Producto accesorio
Gabinetes y Soluciones de Integración

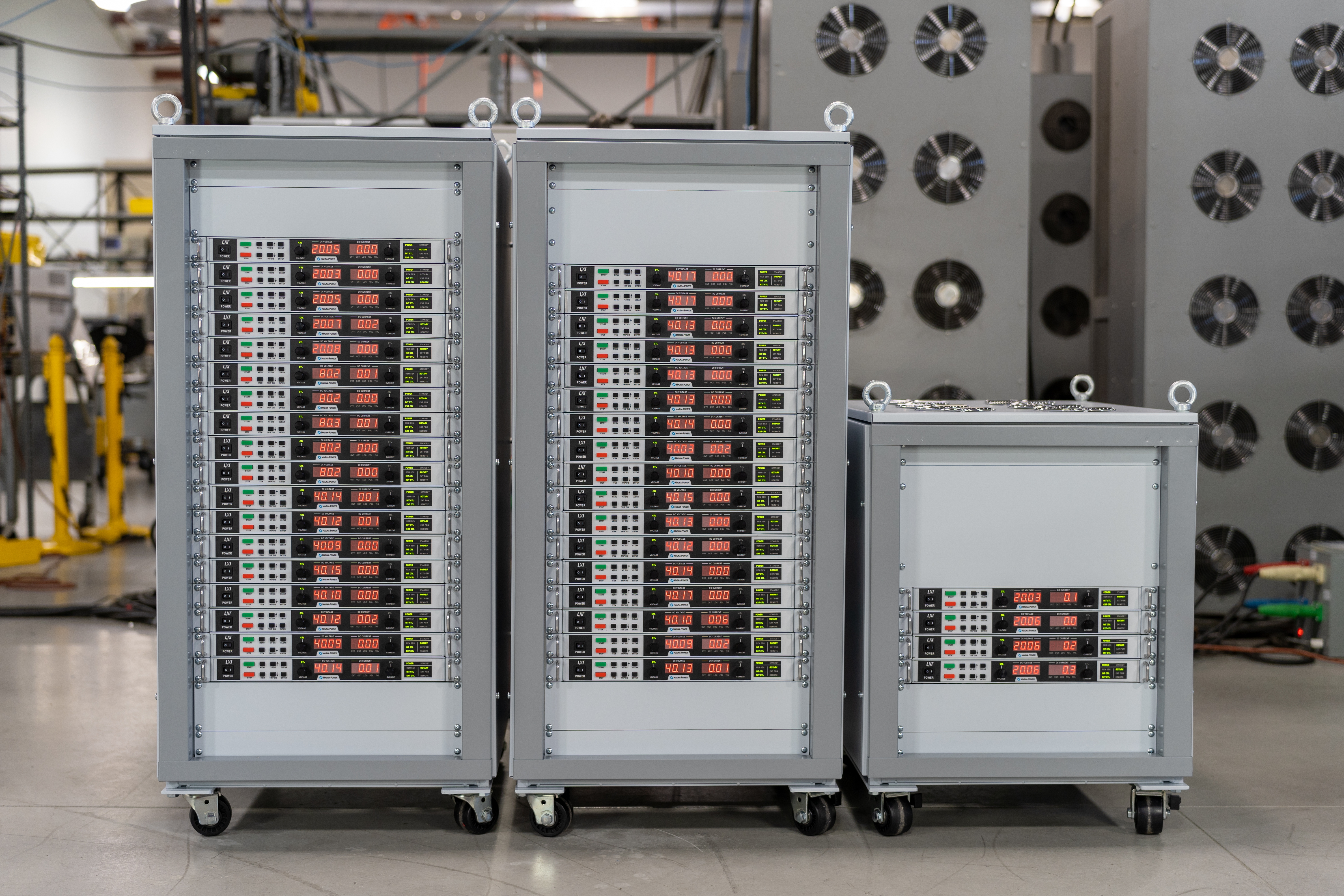

Los gabinetes de rack de Magna-Power combinan una construcción robusta fabricada en EE. UU. y una integración completa de productos en una sola solución de rack. Fabricados con acero laminado en frío calibre 12 y soldados internamente, los gabinetes llegan preinstalados con el sistema de enfriamiento por aire o agua, las conexiones de alimentación y los accesorios que su sistema necesita. Desde un gabinete de 12U hasta una configuración de triple bahía de 108U, cada gabinete está diseñado para alojar y operar fuentes de alimentación y cargas electrónicas de Magna-Power de forma inmediata. El resultado es un sistema llave en mano, probado en fábrica y de confianza en entornos de defensa, aeroespacial, investigación y pruebas industriales.
Hable con un experto
Rugged Construction
Heavy-Duty Rack Enclosures, Made in USA
Magna-Power's heavy-duty cabinet enclosures—fabricated by Magna-Power and available with or without product integration—are trusted by customers across many industries, including: military and defense, aerospace, industrial research and development, product testing, and education.
Cold-rolled USA 1008 steel
Magna-Power's cabinet enclosures begin with 12-gauge cold-rolled USA 1008 steel that gets bent and welded within Magna-Power's metal processing operations. The resulting heavy-duty frame is then powder coated, with ground-plane surfaces carefully masked.
EIA-310 standard
Four vertical EIA-310 rails spanning the length of the cabinet in the front and rear are fabricated from 12-gauge galvanized steel.
Casters or pedestal base
Standard 700-pound per caster rating with low resistance bearings allows heavy loads to be rolled with ease. An optional welded pedestal base increases the weight limit to over 4,000 lbs.
Cooling solutions
Simplified product installation with standard air and water cooling integrations
Beyond the installation, Magna-Power also provides necessary cooling integrations for its cabinet enclosures, designed to integrate with Magna-Power programmable DC power supplies and electronic loads. Different cooling solutions are provided, as standard, depending on whether the integrated products are air or water cooled.
2,300 CFM+ air cooling
For air cooled products integrated into the enclosure, high-quality top-mounted fans are installed to pull air from the enclosure's bottom opening and exhaust from the top. A provided control transformer with separate fusing allows fans to be powered from the same voltage as the integrated products. In addition, an integrated relay ensures the fans are not turned on unless the integrated product's control power is enabled.
Copper water cooling manifold
For water cooled products integrated into the enclosure, a copper manifold is machined-to-order to provide a single inlet and outlet for the cabinet, with PEX tubing internally paralleling inlet and outlet cooling paths for the installed products.
Product integration
Complete product installation and testing with additional accessories available
Standard integration by Magna-power includes a full enclosed cabinet with casters and suitable cooling. Various additional accessories are available. Contact your Magna-Power sales partners for more information on custom integration.
Included standard with a Magna-Power cabinet enclosure
- Heavy-duty welded cabinet
- Side panels and blank spacers to cover front and rear
- Fan cooling and integration (air cooled products only)
- Water manifold and with parallel connections (water cooled products only)
- Casters including two locking
- Rear access panel per product (limit one per 3U)
- Fixed rear support rails
- Product installation and testing
Additional accessories available
- AC power cables and connection
- DC power cables and connection
- AC breakers
- Interconnection of DC bus work
- Emergency stop button
- Welded floor mountable pedestal base (replaces casters)
- Anderson DC power connectors
- DC output grommets
Las especificaciones están sujetas a cambios sin previo aviso. Salvo que se indique lo contrario, todas las especificaciones se miden en los valores nominales máximos del producto.
Physical Specifications
31.5" H x 24" W x 31.5" D (80.0 x 55.6 x 80.0 cm)
51" H x 24" W x 31.5" D (129.5 x 61.0 x 80.0 cm)
67" H x 24" W x 31.5" D (170.2 x 61.0 x 80.0 cm)
74" H x 24" W x 31.5" D (188.0 x 61.0 x 80.0 cm)
67" H x 48" W x 31.5" D (170.2 x 121.9 x 80.0 cm)
74" H x 48" W x 31.5" D (188.0 x 121.9 x 80.0 cm)
67" H x 72" W x 31.5" D (170.2 x 182.9 x 80.0 cm)
74" H x 72" W x 31.5" D (188.0 x 182.9 x 80.0 cm)
79.5" H x 24" W x 31.5" D (201.9 x 55.6 x 80.0 cm)
