DC 전자 부하기
디지털 MagnaLINK™제어는 혁신적이고 견고한 전력 손실 기술과 결합됩니다.
선형 및 액티브 저항 전력 분산
다양한 냉각 구성을 갖춘 Magna-Power의 광범위한 DC 전자 부하 라인은 주변 작동 온도가 최대 50 ° C까지 지속되는 최대 출력을 제공합니다.
MagnaLOAD Configuration Tool and Instant QuoteKey Product Line Features
- Many Control Modes
- SCPI Remote Programming API
- High Accuracy Measurements
- Master-Slave Functionality
- 25-pin Configurable User I/O
- Programmable Protection Limits
- Interlock Shutdown Input
- Made in the USA
Product Series
ALx 시리즈
1.25 kW to 20 kW in 3U to 24U
Number of Models: 27
Voltage Range:
Up to 1000 Vdc
Current Range:
Up to 4800 Adc

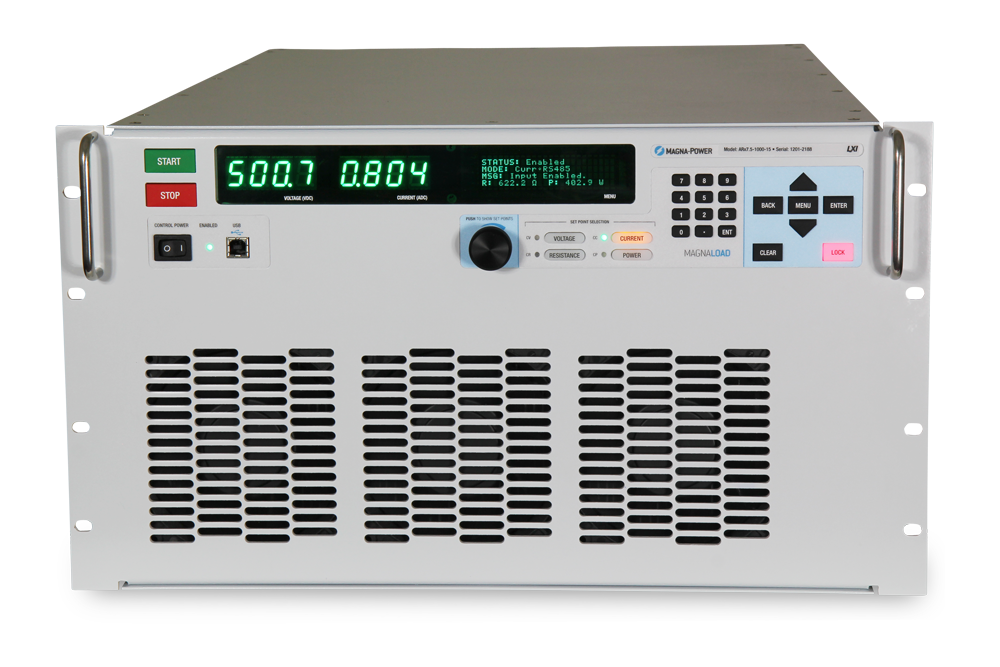

ARx 시리즈
6.75 kW in 6U
Number of Models: 4
Voltage Range:
Up to 1000 Vdc
Current Range:
Up to 140 Adc

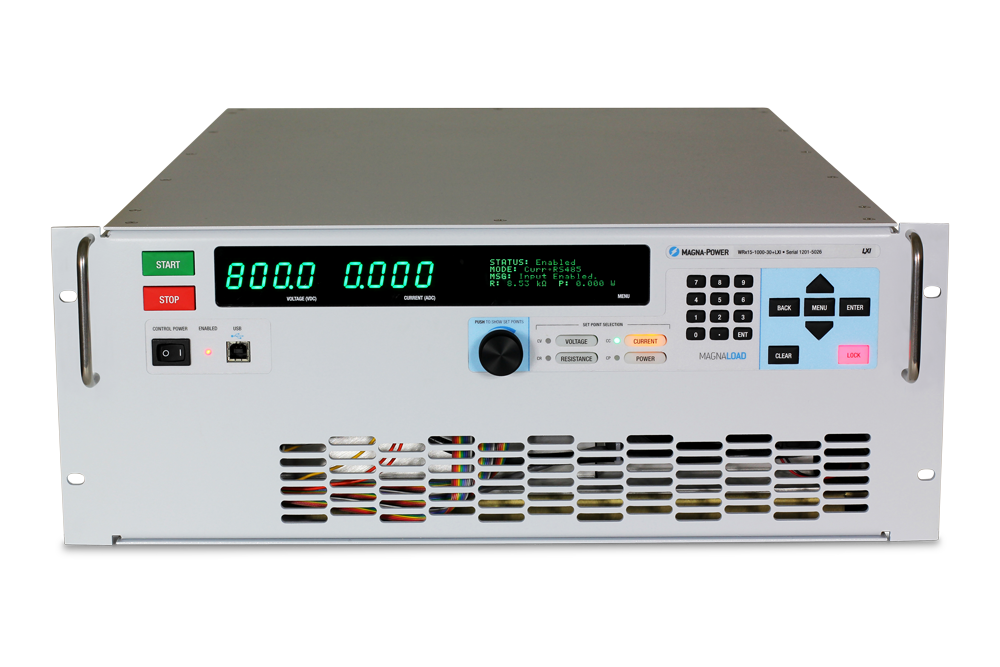

WRx 시리즈
12.5 kW in 4U
Number of Models: 3
Voltage Range:
Up to 1000 Vdc
Current Range:
Up to 130 Adc per unit
Options and Accessories
The following are options and accessories developed specifically for Magna-Power's dc electronic loads
Accessories
External accessories and integration services are available for Magna-Power products
Integrated Options
Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.
CANopen
Option Code: +CAN
Availability: ALx Series
CANopen communication protocol and dual RJ-45 interface enabling CAN bus communications, popular within automotive applications
EtherCAT
Option Code: +ECAT
Availability: ALx Series , ARx Series , WRx Series
EtherCAT communication protocol and dual RJ-45 interface for high-performance communication in factory automation, motion control, and robotics
EtherNet/IP
Option Code: +EIP
Availability: ALx Series , ARx Series , WRx Series
EtherNet/IP communication protocol and dual RJ-45 interface with EIS profile for industrial automation, commonly used in Allen Bradley, Schneider Electric, and Omron PLCs
IEEE-488 GPIB
Option Code: +GPIB
Availability: ALx Series , ARx Series , WRx Series
IEEE-488 General Purpose Interface Bus (GPIB) communication interface providing full command support and compatibility with other GPIB devices
LXI TCP/IP Ethernet
Option Code: +LXI
Availability: ALx Series , ARx Series , WRx Series
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Modbus-TCP
Option Code: +MTCP
Availability: ALx Series , ARx Series , WRx Series
Modbus-TCP communication protocol and dual RJ-45 interface with full command set support as Modbus commands
PROFINET
Option Code: +PROF
Availability: ALx Series , ARx Series , WRx Series
PROFINET communication protocol and dual RJ-45 interface for industrial automation, commonly used in Siemens PLCs
