DC Electronic Loads
Digital MagnaLINK™ control combined with innovative and robust power dissipation technology.
Electronic loads with ultra-wide operating and temperature range
Magna-Power's DC electronic loads utilize the company's MagnaLINK™ distributed DSP digital control platform combined with conservative ratings and cooling methods to provide, providing reliable and flexible DC electronic offering. Fully digital control loops provide adjustable control gains and programmable slew rates. Additionally, the MagnaLOADs support Voltage, Current, Power, Resistance, and Shunt Regulator modes, providing versatility for different DC sources. MagnaLOADs support full-power continuous loading up to 50°C ambient operating temperature.
MagnaLOAD Configuration Tool and Instant QuoteKey Product Line Features
- Many Control Modes
- SCPI Remote Programming API
- High Accuracy Measurements
- Master-Slave Functionality
- 26-pin Configurable User I/O
- Programmable Protection Limits
- Interlock Shutdown Input
- Made in the USA
Options and Accessories
The following are options and accessories developed specifically for Magna-Power's dc electronic loads
Accessories
External accessories and integration services are available for Magna-Power products
DC Power Cables
DC power cables with wide range voltage ratings, current ratings, and termination options, made-to-order by Magna-Power
Rack Enclosures and Integration
Various size rack enclosures, including 12U, 24U, 30U, 36U, 30Ux2 and 36Ux2, with casters, fans and product integration.

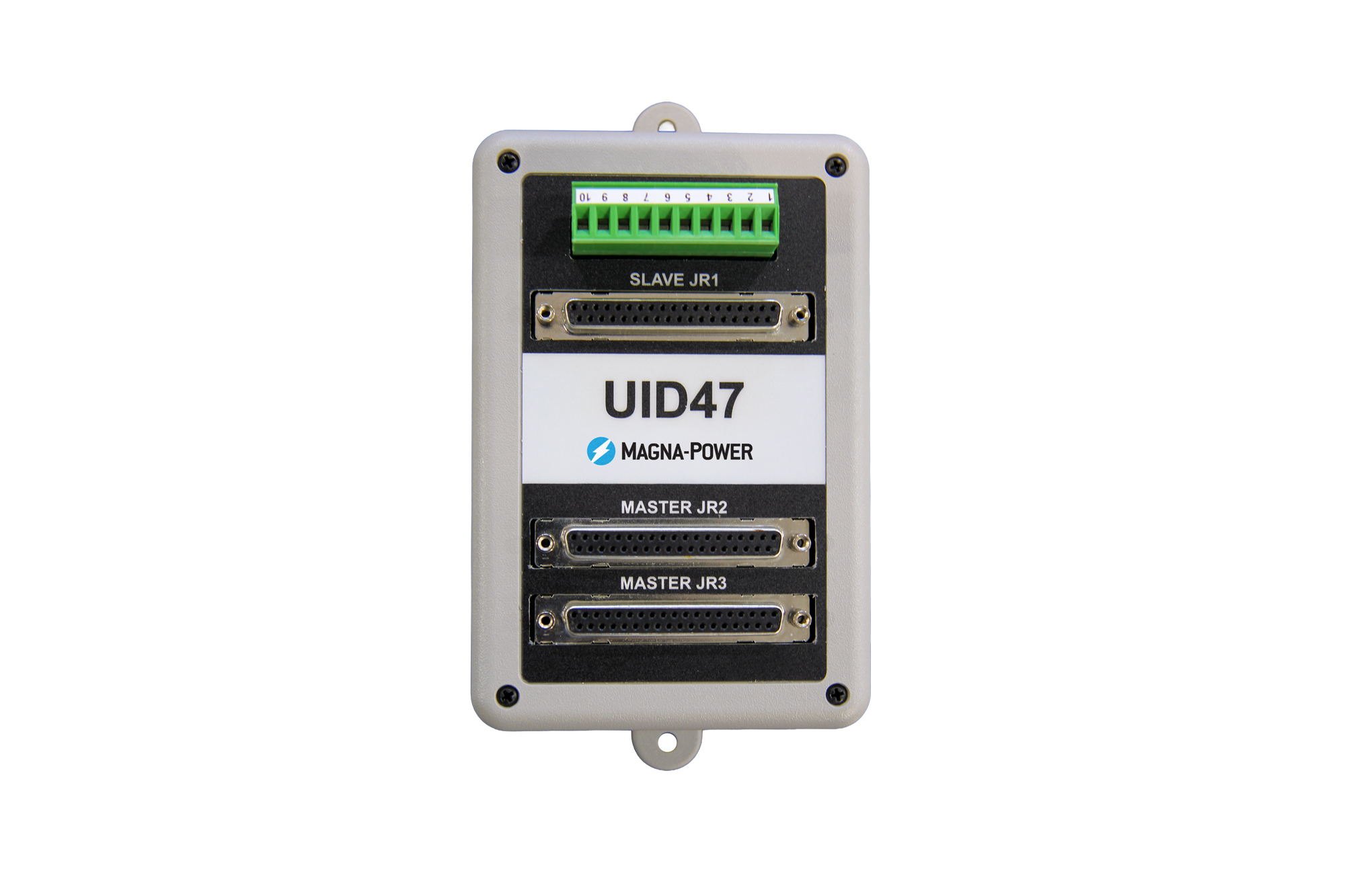

Additional Accessories
Integrated Options
Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.
CANopen
Option Code: +CAN
Availability: ALx Series
CANopen communication protocol and dual RJ-45 interface enabling CAN bus communications, popular within automotive applications
EtherCAT
Option Code: +ECAT
Availability: ALx Series , ARx Series , WRx Series
EtherCAT communication protocol and dual RJ-45 interface for high-performance communication in factory automation, motion control, and robotics
EtherNet/IP
Option Code: +EIP
Availability: ALx Series , ARx Series , WRx Series
EtherNet/IP communication protocol and dual RJ-45 interface with EIS profile for industrial automation, commonly used in Allen Bradley, Schneider Electric, and Omron PLCs
LXI TCP/IP Ethernet
Option Code: +LXI
Availability: ALx Series , ARx Series , WRx Series
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Modbus-TCP
Option Code: +MTCP
Availability: ALx Series , ARx Series , WRx Series
Modbus-TCP communication protocol and dual RJ-45 interface with full command set support as Modbus commands
Pedestal Base
Option Code: +PB
Availability: ALx Series
A heavy-duty, floor-mountable platform base for the rack enclosure that replaces the standard casters, designed for fixed installations.
PROFINET
Option Code: +PROF
Availability: ALx Series , ARx Series , WRx Series
PROFINET communication protocol and dual RJ-45 interface for industrial automation, commonly used in Siemens PLCs
