Programmable DC Power Supplies
Built on over 40 years of innovative power electronics design and manufacturing expertise
Robust Current-Fed Power Processing • 375,000+ Configurations
Magna-Power's MagnaDC product line of programmable DC power supplies has evolved over 40 years, incorporating the latest innovations in power electronics and building upon Magna-Power's signature current-fed power processing topology. Using a common control platform, the product line spans over 160,000 configurations, covering an extremely wide range of voltages and currents, allowing users to accurately select an appropriately rated product without needing to oversize their power supply. Standard options are offered to tailor performance or cooling for the intended application.
All MagnaDC programmable DC power supplies feature a common SCPI command-set and come standard with LabVIEW drivers, IVI drivers, software GUI, safety interlock, and isolated external I/O port. In addition, all Magna-Power products are designed to operate at peak ratings, continuously, at 50°C.
MagnaDC Configuration Tool and Instant QuoteKey Product Line Features
- SCPI Remote Programming API
- High Accuracy Measurements
- Master-Slave Functionality
- Remote Sensing
- 37-Pin External User I/O
- RS232 Interface
- Ethernet and GPIB Available
- 0-10V External Analog Inputs
- Programmable Protection Limits
- Fast Transient Response
- Remote Interface Software
- Interlock Shutdown Input
- Made in the USA
Product Series
SLx Series
1.5 kW to 10 kW in 1U
Number of Models: 171
Voltage Range: 5 Vdc to 1000 Vdc
Current Range: 1.5 Adc to 250 Adc
SL Series
1.5 kW to 10 kW in 1U
Number of Models: 127
Voltage Range: 5 Vdc to 1500 Vdc
Current Range: 1.5 Adc to 250 Adc
XR Series
2 kW to 10 kW in 2U
Number of Models: 39
Voltage Range: 2Vdc to 10,000 Vdc
Current Range: 0.2 Adc to 600 Adc
TS Series
5 kW to 100 kW in 3U to 16U
Number of Models: 275
Voltage Range:
5 Vdc to 6000 Vdc
Current Range:
1.2 Adc to 8000 Adc
MT Series
150 kW to 3000 kW+ in 60U to 90U+
Number of Models: 49
Voltage Range:
32 Vdc to 6000 Vdc
Current Range:
25 Adc to 24000 Adc
ML Series
150 kW to 3000 kW+ in 60U to 90U+
Number of Models: 49
Voltage Range: 32 Vdc to 6000 Vdc
Current Range: 25 Adc to 24000 Adc
MS Series
Discontinued, Currently Supported
PQA/PQD Series
Discontinued, End of Service
SQA/SQD Series
Discontinued, End of Service
MQA/MQD Series
Discontinued, End of Service
PQ Series
Discontinued, End of Service
SQ Series
Discontinued, End of Service
MQ Series
Discontinued, End of Service
TQ Series
Discontinued, End of Service
PX Series
Discontinued, End of Service
SX Series
Discontinued, End of Service
Options and Accessories
The following are options and accessories developed specifically for Magna-Power's programmable dc power supplies
Accessories
External accessories and integration services are available for Magna-Power products
BDx Module
1U blocking diode module covering a wide range of voltages and currents and providing necessary cooling, power supply controls interface, and remote sensing location.
Cabinet and Integration
Various size cabinets, including 12U, 24U, 30U, 36U, 30Ux2 and 36Ux2, with casters, fans and product integration.
DBx Module
High-performance add-on bringing ultra-high stability less than 10 ppm, up to 24-bit resolution, and up to 10x reduction in ripple.
DC Power Cables

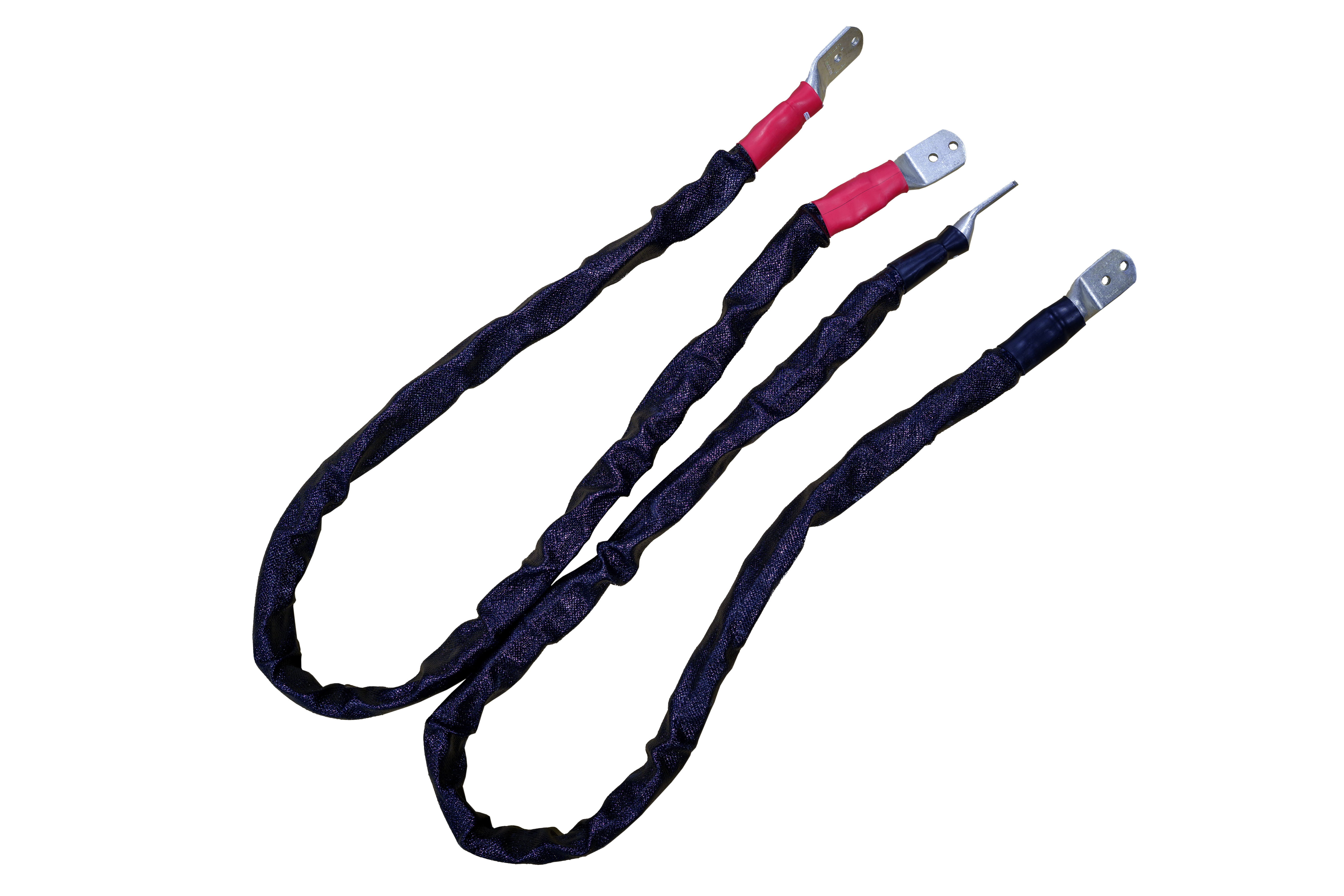

DC power cables with wide range voltage ratings, current ratings, and termination options, made-to-order by Magna-Power
UID47: Universal Interface Device 47
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37-pin cables with a braided shield.
Additional Accessories
RS485 Converter
Industrial RS232 to Addressable RS485 Converter. Plugs into product's RS232 port.
UID46: Universal Interface Device 46
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
USB Edgeport Converter
Industrial Plug and Play USB to RS232 Converter. Adapter plugs into product's RS232 port.
Integrated Options
Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.
CANopen
Option Code: +CAN
Availability: SLx Series
CANopen communication protocol and dual RJ-45 interface enabling CAN bus communications, popular within automotive applications
EtherCAT
Option Code: +ECAT
Availability: SLx Series
EtherCAT communication protocol and dual RJ-45 interface for high-performance communication in factory automation, motion control, and robotics
EtherNet/IP
Option Code: +EIP
Availability: SLx Series
EtherNet/IP communication protocol and dual RJ-45 interface with EIS profile for industrial automation, commonly used in Allen Bradley, Schneider Electric, and Omron PLCs
High Isolation Output
Option Code: +ISO
Availability: TS Series , MT Series , MS Series , ML Series
Available for models rated for 250 Vdc to 1000 Vdc, the +ISO option greatly increases the output isolation, used when the application demands floating or tying units in series beyond the standard ±1000 Vdc output isolation rating.
High Slew Rate Output
Option Code: +HS
Availability: SL Series , XR Series , TS Series , MT Series , MS Series , ML Series
A hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This option provides higher bandwidth with faster output rise and fall times.
IEEE-488 GPIB
Option Code: +GPIB
Availability: SL Series , XR Series , TS Series , MT Series , MS Series , ML Series
IEEE-488 General Purpose Interface Bus (GPIB) communication interface providing full command support and compatibility with other GPIB devices
Integrated Blocking Diode
Option Code: +BD
Availability: TS Series , MT Series , MS Series , ML Series
An internally heatsinked protection diode on the positive output terminal of a MagnaDC programmable DC power supply to protect the product's output from reverse voltages far exceeding the product's output voltage rating.
LXI TCP/IP Ethernet
Option Code: +LXI
Availability: SLx Series , SL Series , XR Series , TS Series , MT Series , MS Series , ML Series
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Modbus-TCP
Option Code: +MTCP
Availability: SLx Series
Modbus-TCP communication protocol and dual RJ-45 interface with full command set support as Modbus commands
PROFINET
Option Code: +PROF
Availability: SLx Series
PROFINET communication protocol and dual RJ-45 interface for industrial automation, commonly used in Siemens PLCs
Ruggedized
Option Code: +RUG
Availability: SLx Series , SL Series , XR Series
Internal product ruggedization, which has been independently tested to comply with select MIL-STD-810G and RTCA DO-160 shock and vibration specifications.
Water Cooling
Option Code: +WC
Availability: TS Series , MS Series
Using an integrated central heat exchanger and specially wound magnetic components, water cooling is available for select Magna-Power power supplies for use in densely packaged system cabinets, where heat removal by the product's standard air cooling presents a challenge.
