Alimentatori programmabili DC
Built on over 40 years of innovative power electronics design and manufacturing expertise
Elaborazione di alimentazione alimentata corrente robusta • 375.000 configurazioni
La linea di prodotti DC programmabili di Magna-Power di Magna-Power si è evoluto per oltre 40 anni, incorporando le ultime innovazioni nell'elettronica di potenza e basandosi sulla topologia di elaborazione dell'energia corrente di Magna-Power. Utilizzando una piattaforma di controllo comune, la linea di prodotti si estende su oltre 160.000 configurazioni, coprendo una gamma estremamente ampia di tensioni e correnti, consentendo agli utenti di selezionare accuratamente un prodotto valutato in modo appropriato senza aver bisogno di sovradimensionare la propria alimentazione. Le opzioni standard sono offerte per personalizzare le prestazioni o il raffreddamento per l'applicazione prevista.
Tutti gli alimentatori DC programmabili MagnaDC sono dotati di un comando comune SCPI e sono di serie con driver LabView, driver IVI, GUI software, interblocco di sicurezza e porta I/O esterna isolata. Inoltre, tutti i prodotti Magna-Power sono progettati per funzionare a punta di picco, continuamente, a 50 ° C
Key Product Line Features
- SCPI Remote Programming API
- High Accuracy Measurements
- Master-Slave Functionality
- Remote Sensing
- 37-Pin External User I/O
- RS232 Interface
- Ethernet and GPIB Available
- 0-10V External Analog Inputs
- Programmable Protection Limits
- Fast Transient Response
- Remote Interface Software
- Interlock Shutdown Input
- Made in the USA
Product Series
Serie SLX
1.5 kW to 10 kW • 1U
Number of Models
171
Voltage Range
5 Vdc to 1000 Vdc
Current Range
1.5 Adc to 250 Adc

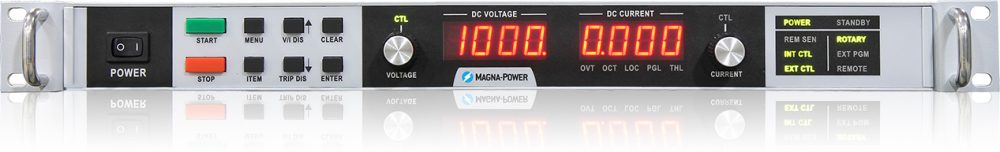

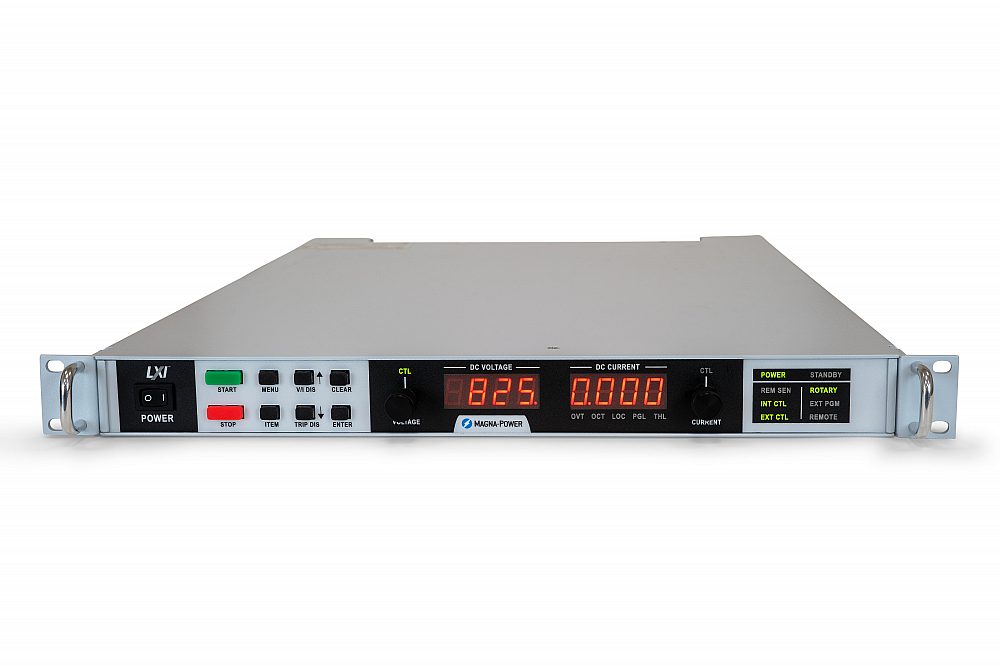

Serie SL
1.5 kW to 10 kW • 1U
Number of Models
127
Voltage Range
5 Vdc to 1500 Vdc
Current Range
1.5 Adc to 250 Adc

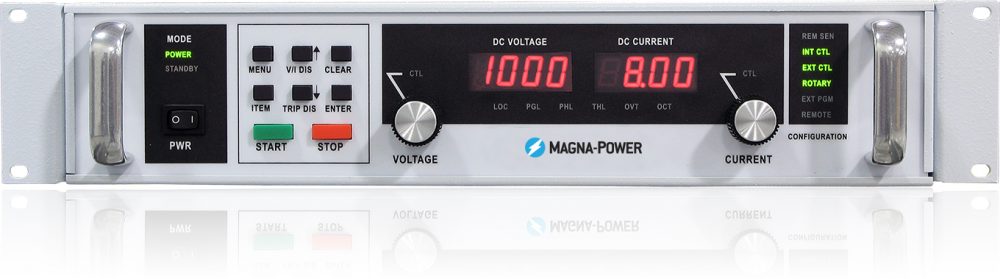

Serie XR
2 kW to 10 kW • 2U
Number of Models
39
Voltage Range
2000 Vdc to 10,000 Vdc
Current Range
310 Adc to 600 Adc

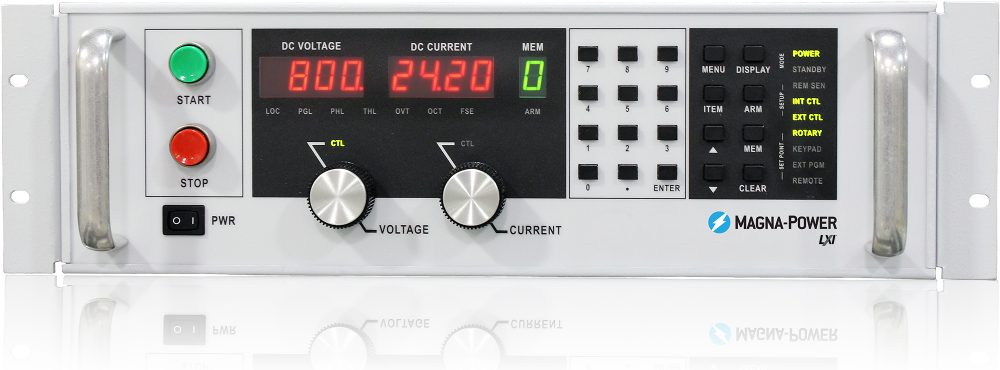

Serie TS
5 kW to 100 kW • 3U to 16U
Number of Models
275
Voltage Range
5 Vdc to 6000 Vdc
Current Range
1.2 Adc to 8000 Adc
Serie MT
150 kW to 2000 kW+ • 60U to 90U+
Number of Models
49
Voltage Range
32 Vdc to 6000 Vdc
Current Range
25 Adc to 24000 Adc
Serie ML
500 kW to 10 MW+
Number of Models
38
Voltage Range
100 Vdc to 6000 Vdc
Current Range
83 Adc to 5000 Adc (per unit)

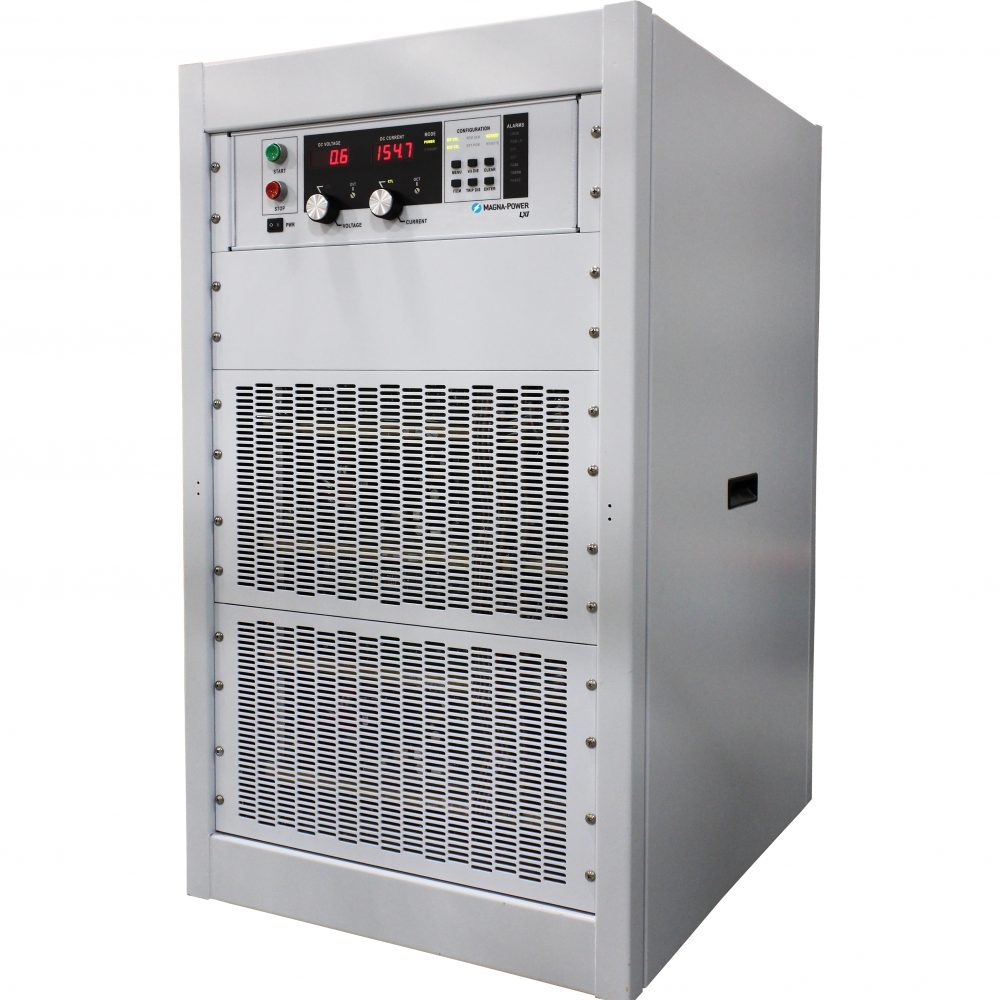

MS Series
Discontinued, Currently Supported
PQA/PQD Series
Discontinued, End of Service
SQA/SQD Series
Discontinued, End of Service
MQA/MQD Series
Discontinued, End of Service
PQ Series
Discontinued, End of Service
SQ Series
Discontinued, End of Service
MQ Series
Discontinued, End of Service
TQ Series
Discontinued, End of Service
PX Series
Discontinued, End of Service
SX Series
Discontinued, End of Service
Options and Accessories
The following are options and accessories developed specifically for Magna-Power's programmable dc power supplies
Accessories
External accessories and integration services are available for Magna-Power products
BDx Module
1U blocking diode module covering a wide range of voltages and currents and providing necessary cooling, power supply controls interface, and remote sensing location.
DBx Module
High-performance add-on bringing ultra-high stability less than 10 ppm, up to 24-bit resolution, and up to 10x reduction in ripple.
DC Power Cables
DC power cables with wide range voltage ratings, current ratings, and termination options, made-to-order by Magna-Power
Rack Enclosures and Integration
Various size rack enclosures, including 12U, 24U, 30U, 36U, 30Ux2 and 36Ux2, with casters, fans and product integration.
UID47: Universal Interface Device 47
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37-pin cables with a braided shield.
Additional Accessories
RS485 Converter
Industrial RS232 to Addressable RS485 Converter. Plugs into product's RS232 port.
UID46: Universal Interface Device 46
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
USB Edgeport Converter
Industrial Plug and Play USB to RS232 Converter. Adapter plugs into product's RS232 port.
Integrated Options
Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.
Blank Front Panel
Option Code: +FP1
Availability: Serie SLX
The FP1 blank front panel option removes all front-panel controls except for a status indicator and on/off rocker switch, while still providing full functionality via computer and User I/O control
CANopen
Option Code: +CAN
Availability: Serie SLX
CANopen communication protocol and dual RJ-45 interface enabling CAN bus communications, popular within automotive applications
EtherCAT
Option Code: +ECAT
Availability: Serie SLX
EtherCAT communication protocol and dual RJ-45 interface for high-performance communication in factory automation, motion control, and robotics
EtherNet/IP
Option Code: +EIP
Availability: Serie SLX
EtherNet/IP communication protocol and dual RJ-45 interface with EIS profile for industrial automation, commonly used in Allen Bradley, Schneider Electric, and Omron PLCs
High Isolation Output
Option Code: +ISO
Availability: TS Series , MT Series , Serie ML , MS Series
Available for models rated for 250 Vdc to 1000 Vdc, the +ISO option greatly increases the output isolation, used when the application demands floating or tying units in series beyond the standard ±1000 Vdc output isolation rating.
High Slew Rate Output
Option Code: +HS
Availability: SL Series , XR Series , TS Series , MT Series , Serie ML , MS Series
A hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This option provides higher bandwidth with faster output rise and fall times.
IEEE-488 GPIB
Option Code: +GPIB
Availability: SL Series , XR Series , TS Series , MT Series , Serie ML , MS Series
IEEE-488 General Purpose Interface Bus (GPIB) communication interface providing full command support and compatibility with other GPIB devices
Integrated Blocking Diode
Option Code: +BD
Availability: TS Series , MT Series , Serie ML , MS Series
An internally heatsinked protection diode on the positive output terminal of a MagnaDC programmable DC power supply to protect the product's output from reverse voltages far exceeding the product's output voltage rating.
LXI TCP/IP Ethernet
Option Code: +LXI
Availability: Serie SLX , SL Series , XR Series , TS Series , MT Series , Serie ML , MS Series
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Modbus-TCP
Option Code: +MTCP
Availability: Serie SLX
Modbus-TCP communication protocol and dual RJ-45 interface with full command set support as Modbus commands
Pedestal Base
Option Code: +PB
Availability: MT Series
A heavy-duty, floor-mountable platform base for the rack enclosure that replaces the standard casters, designed for fixed installations.
PROFINET
Option Code: +PROF
Availability: Serie SLX
PROFINET communication protocol and dual RJ-45 interface for industrial automation, commonly used in Siemens PLCs
Ruggedized
Option Code: +RUG
Availability: Serie SLX , SL Series , XR Series
Internal product ruggedization, which has been independently tested to comply with select MIL-STD-810G and RTCA DO-160 shock and vibration specifications.
Water Cooling
Option Code: +WC
Availability: TS Series , MS Series
Using an integrated central heat exchanger and specially wound magnetic components, water cooling is available for select Magna-Power power supplies for use in densely packaged system cabinets, where heat removal by the product's standard air cooling presents a challenge.
