Serie TS

Programmable DC Power Supply

Size
3U to 16U
Power
5 kW to 100 kW
Manufactured
USA
Build-time
4-6 weeks

The TS Series offers many models spanning a wide voltage and current range, while still maintaining among the highest power density rack-mount packaging. The TS Series covers voltages from 5 Vdc up to 6000 Vdc (floating) and current levels from 1.2 Adc up to 8000 Adc. Models 5 kW to 15 kW are available in a 3U chassis, models 20 kW and 25 kW are available in a 4U chassis, models 30 kW are available in a 6U chassis, models 40 kW and 50 kW are available in an 8U chassis with removable casters, models 75 kW models are available in a 12U chassis with removable casters, and 100 kW models are available in a 16U chassis with removable casters. In addition, there are several special low voltage high current models, enabling a more cost-effective solution for these requirements. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, IVI drivers, and LabVIEW drivers for integration into a variety of programming environment.

CE Mark Logo UKCA Logo
Magna-Power Expert

Talk with an expert

Scalable rack performance with configured-to-order features and options

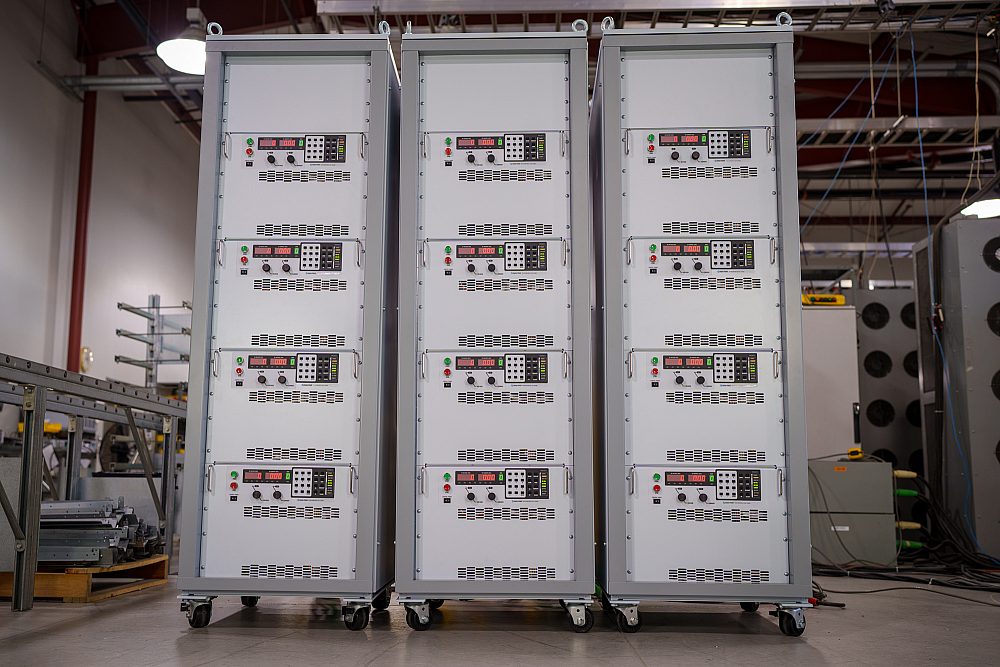

Sistemi rack-mount ad alta potenza

Sistemi rack-mount ad alta potenza

Risposta rapida, regolazione precisa e uscita pulita per carichi critici.

Gli alimentatori DC programmabili Serie TS erogano da 5 kW a 100 kW in configurazioni rack-mount da 3U a 16U, coprendo da 5 Vdc a 6.000 Vdc (floating) e fino a 10.000 Adc. La regolazione in modalità tensione e in modalità corrente supporta il funzionamento a tensione costante/corrente costante con crossover continuo, mentre le prestazioni restano elevate con un recupero dei transitori di carico di 2 ms (gradino 50–100% entro ±1%), precisione di programmazione di ±0,075% sia per tensione che per corrente, e basso ripple (dipendente dal modello, fino a 35 mVrms nelle configurazioni standard). L'efficienza varia in base al modello fino al 92%, e i telai da 8U a 16U includono ruote rimovibili per l'uso autonomo o l'integrazione in rack.

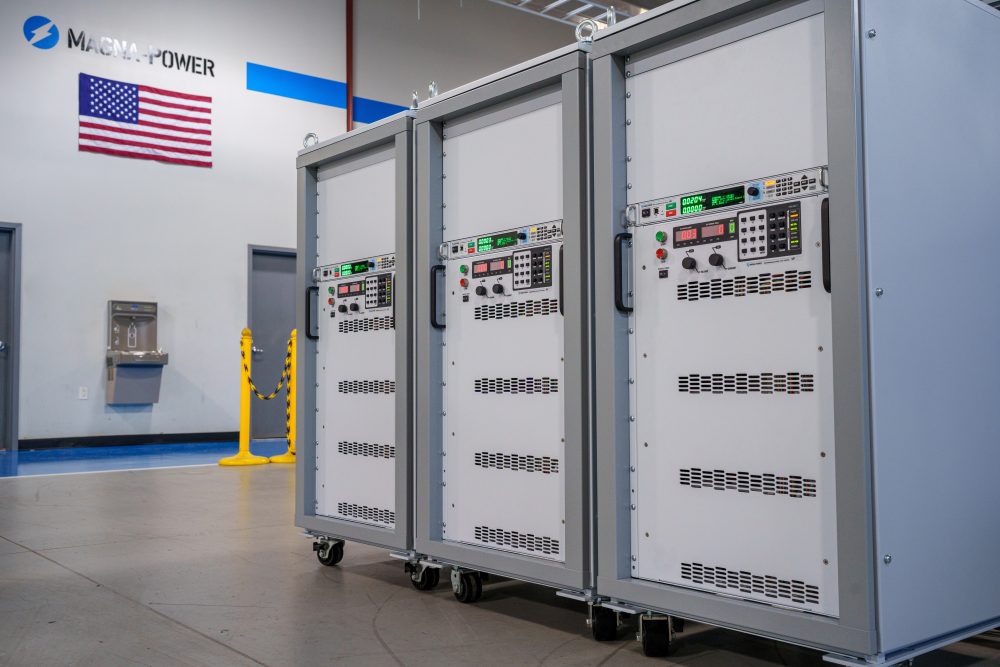

Configurato su ordinazione con opzioni integrate

Configurato su ordinazione con opzioni integrate

Funzionalità standard complete, estendibili quando necessario.

Come il resto della linea MagnaDC, gli alimentatori della Serie TS partono da una solida base di controllo: SCPI su RS232, User I/O posteriore isolato, driver LabVIEW e IVI e Remote Interface Software inclusi. Da qui, le opzioni integrate permettono di personalizzare ogni sistema in base al suo ruolo—Uscita ad Alto Isolamento (+ISO) per lo stacking in serie esteso, Uscita ad Alta Velocità di Variazione (+HS) per dinamiche più rapide, LXI TCP/IP Ethernet (+LXI) e IEEE-488 GPIB (+GPIB) per comunicazioni aggiuntive, oltre a opzioni di protezione e meccaniche come un Diodo di Blocco Integrato (+BD) o il Raffreddamento a Liquido (+WC) in sostituzione del raffreddamento ad aria standard.

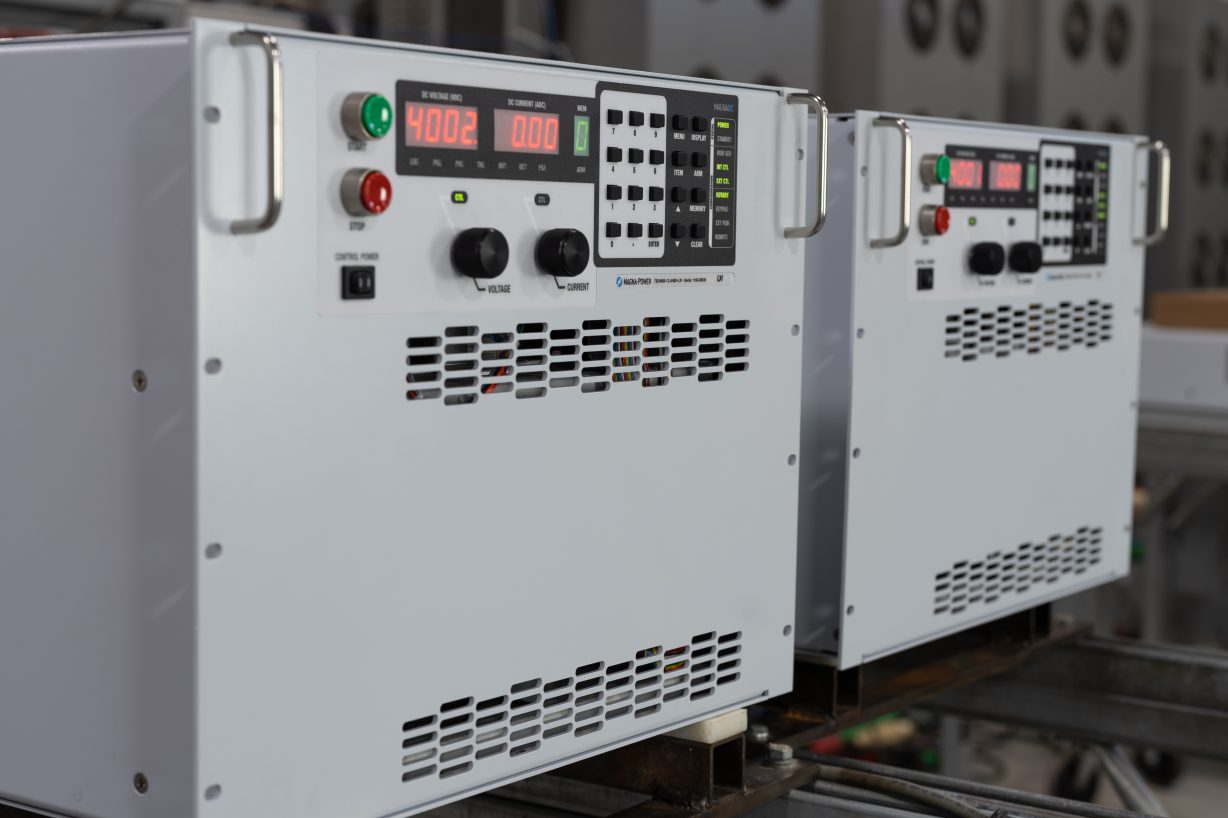

Controllo continuo dal pannello frontale con opzione pannello cieco

Controllo continuo dal pannello frontale con opzione pannello cieco

Operativo dove serve, nascosto dove non serve.

The standard SL front panel provides rotary and key-based control, bright digital metering, and clear status indicators, so operators can configure setpoints, start and stop the supply, and see system health at a glance. For OEMs and production tools, the optional blank (C-version) front panel removes local controls altogether while retaining full control via communication interfaces and rear 37-pin user I/O, keeping systems secure, clean, and operator-proof.

Rugged by design: safety + reliability, as you'd expect from Magna-Power.

Elaborazione di potenza affidabile a corrente impressa

Elaborazione di potenza affidabile a corrente impressa

Robusto per design: topologia autoprotettiva per la massima operatività.

The SLx Series uses a high-frequency, current-fed architecture that adds a control stage beyond conventional voltage-fed designs. This topology inherently limits fault energy—avoiding fast-rising current spikes and magnetic core saturation so the supply self-protects and your load stays safe. Paired with state-of-the-art SiC power semiconductors, SLx delivers class-leading power density, efficiency, and reliability, including continuous full-power operation up to 50°C ambient.

  • Current-fed architecture with an added control stage vs. voltage-fed.
  • Inherent surge immunity—no current spikes or core saturation.
  • Self-protecting behavior under fault conditions.
  • SiC devices for high density and efficiency; full power to 50°C.
Caratteristiche di sicurezza e interlock

Caratteristiche di sicurezza e interlock

Avvio graduale, protezione programmabile e disconnessione meccanica della linea per una sicurezza reale.

MagnaDC supplies start gently and watch continuously. A soft-start stage keeps inrush below steady-state draw, while built-in diagnostics monitor line, thermal, and control conditions. In standby or on a diagnostic fault, an embedded AC contactor mechanically disconnects the mains, assuring the unit only processes power when intended. Faults are shown on the front-panel status display, through 5V digital outputs, and are queryable via SCPI.

  • Programmable trips: Over voltage (OVT) and over current (OCT)/

  • Control integrity: Program-line over-voltage detection.

  • Thermal protection: Over temperature on internal heatsinks.

  • Interlock/E-stop fault monitoring as a standard diagnostic.

  • Field integration: 5V interlock input (with 5V reference) for a dry-contact, latching inhibit with control power maintained.

From lab scripts to factory PLCs, flexible programming & integration.

Integrazione software semplificata

Comandi leggibili, risultati rapidi—funziona con qualsiasi linguaggio.

Gli alimentatori MagnaDC offrono un'API testuale chiara con SCPI nativo, un linguaggio di comando basato su ASCII inviato tramite comunicazioni socket. Oltre 40 comandi ben documentati coprono avvio/arresto, set point per tensione, corrente, misurazioni ad alta precisione e configurazione completa—così i vostri script e sistemi passano rapidamente dal proof-of-concept alla produzione.

  • Set di comandi SCPI con comportamento coerente.
  • Avvio/arresto e protezioni: abilitazione dell'uscita, impostazione dei limiti di intervento, interrogazione dello stato.
  • Letture ad alta precisione: tensione, corrente, potenza e feedback di sensing.
  • Documentazione ed esempi orientati allo sviluppatore.
import serial
magnaPower = serial.Serial(port='COM4', baudrate=19200)
magnaPower.write('*IDN?\n'.encode())
print magna_power.readline()
magnaPower.write('VOLT 0\n'.encode())
magnaPower.write('CURR 0\n'.encode())
magnaPower.write('OUTP:START\n'.encode())
magnaPower.write('VOLT 270\n'.encode())
currSetPoints = [50, 100, 150, 250]
for currSetPoint in currSetPoints:
    print 'Setting Current to %s A' % currSetPoint
    magnaPower.write('CURR {0}\n'.format(currSetPoint).encode())
    magnaPower.write('MEAS:VOLT?\n'.encode())
    print magnaPower.readline()
    time.sleep(20)
magnaPower.write('OUTP:STOP\n'.encode())
magnaPower.close()
magna_power = serial('COM4', 'BaudRate', 19200);
fopen(magnaPower);
fprintf(magnaPower,'*IDN?');
idn = fscanf(magnaPower);
fprintf(magnaPower,'VOLT 0');
fprintf(magnaPower,'CURR 0');
fprintf(magnaPower,'OUTP:START');
fprintf(magnaPower,'VOLT 270');
for currSetPoint in [50, 100, 150, 250]
    display('Setting Current to '+currSetPoint+' A');
    fprintf(magnaPower, 'CURR '+currSetPoint);
    fprintf(magnaPower,'MEAS:VOLT?');
    display(fscanf(magnaPower));
    pause(20);
end
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include <windows.h>

int main()
{
    printf("Opening connection.\n");

    uint8_t recvBuffer[sizeof(uint8_t) * 256];
    memset(recvBuffer, 0, 256);

    // Choose the serial port name.
    // COM ports higher than COM9 need the \\.\ prefix, which is written as
    // "\\\\.\\" in C because we need to escape the backslashes.
    const char* device = "\\\\.\\COM4";

    // Choose the baud rate (bits per second).
    uint32_t baud_rate = 19200;

    HANDLE port = open_serial_port(device, baud_rate);
    if (port == INVALID_HANDLE_VALUE) { return 1; }

    char* scpiCmd = (char*)"*IDN?\n";
    size_t cmdLen = strlen(scpiCmd);
    int result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    result = read_port(port, recvBuffer, 256);
    printf("Sent: %s\nReceived: %s\n", scpiCmd, recvBuffer);

    scpiCmd = (char*)"VOLT 0\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"CURR 0\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"OUTP:START\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"VOLT 270\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    char setPoints[4][5] = {"50", "100", "150", "200"};
    char setPointBuffer[40];
    scpiCmd = (char*)"MEAS:VOLT?\n";

    for (int i = 0; i < 4; i++)
    {
        sprintf(setPointBuffer, "CURR %s\n", setPoints[i]);
        printf("Setting current to %s A\n", setPoints[i]);
        cmdLen = strlen(setPointBuffer);
        result = write_port(port, (uint8_t*)setPointBuffer, cmdLen);
        if (result < 0)
            return -1;
        memset(recvBuffer, 0, 256);
        result = read_port(port, recvBuffer, 256);
        printf("Received: %s\n", recvBuffer);
        Sleep(20000);  // 20000ms = 20s
    }

    scpiCmd = (char*)"OUTP:STOP\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    CloseHandle(port);

    printf("Connection closed.\n");
    return 0;
}
using System;
using System.IO.Ports;
using System.Threading;

namespace SerialCommunicationInCSharp
{
  public class Program
  {
    static bool _continue;
    static SerialPort serialPort;

    public static void Main(string[] args)
    {
      Thread readThread = new Thread(Read);

      Console.WriteLine("Opening connection.");

      // Create a new SerialPort object with default settings.
      serialPort = new SerialPort("COM4", 19200, Parity.None, 8, StopBits.One);

      // Set the read/write timeouts
      serialPort.ReadTimeout = 500;
      serialPort.WriteTimeout = 500;

      serialPort.Open();
      _continue = true;
      readThread.Start();

      Console.WriteLine("Sending: *IDN?");
      serialPort.WriteLine("*IDN?");

      serialPort.WriteLine("VOLT 0");
      serialPort.WriteLine("CURR 0");
      serialPort.WriteLine("OUTP:START");
      serialPort.WriteLine("VOLT 270");

      string[] currSetPoints = { "50", "100", "150", "250" };
ß
      for(int i = 0; i < currSetPoints.Length; i++)
      {
        serialPort.WriteLine(String.Format("'CURR {0}", currSetPoints[i]));
        serialPort.WriteLine("MEAS:VOLT?");
        Thread.Sleep(20000);
      }

      serialPort.WriteLine("OUTP:STOP");

      Console.WriteLine("Closing connection.");
      _continue = false;
      serialPort.Close();
      }

    public static void Read()
    {
      while (_continue)
      {
        try
        {
          string message = serialPort.ReadLine();
          Console.WriteLine("Received: " + message);
        }
        catch (TimeoutException) { }
      }
    }
  }
}
User I/O esterno per controllo PLC o simulazione PHIL

User I/O esterno per controllo PLC o simulazione PHIL

Collegalo come un modulo I/O—non è necessario alcun isolamento aggiuntivo.

Via the included rear 37-pin User I/O connector, MagnaDC supplies can be fully driven and monitored by external signals or a PLC. Voltage, current, OVT, and OCT set points are programmed with 0–10 V analog inputs, while each diagnostic condition has its own +5V digital status pin. Built-in +2.5V, +5V, and +10V reference rails let you use dry contacts without adding external supplies. All I/O is isolated from the output and referenced to earth ground as standard.

  • 0–10 V analog programming for V, I, OVT, and OCT.

  • Per-fault digital outputs: each diagnostic has its own +5V pin.

  • Isolated user I/O referenced to earth ground—no extra isolators.

  • With High Slew Rate Output (+HS), high-bandwidth response and fast rise times support HIL/PHIL simulation applications.

Funzionamento master-slave ad alte prestazioni

Funzionamento master-slave ad alte prestazioni

Scala tensione o corrente senza sacrificare le prestazioni.

All MagnaDC supplies support master-slave operation, using gate-drive signals from the master when configured for parallel, so the whole stack behaves like a single supply—with one control loop and no noisy long analog references. The optional UID47 accessory simplifies wiring for series or parallel sets with near-equal sharing.

  • Single control loop parallel operation: Master gate-drive to slaves for consistent dynamics.

  • Plug & play with the UID47, enabling parallel or series stacks with current/voltage sharing.

  • Series up to the DC isolation rating without added hardware.

  • No additional ORing diodes required for parallel operation.

Software Magna-Power, driver LabVIEW e IVI

Dal pannello frontale virtuale all'automazione completa, pronti all'uso.

Ogni alimentatore MagnaDC include un driver IVI e un driver NI LabVIEW con un set completo di VI, oltre a programmi di esempio per comunicare con l'hardware in pochi minuti. Per il controllo diretto in stile pannello frontale da PC, il Remote Interface Software di Magna-Power offre una visione completa dell'alimentatore: dai comandi e registri alla calibrazione e al firmware.

  • Driver IVI e NI LabVIEW inclusi con set completo di VI.

  • Programmi di esempio per avviare rapidamente integrazione e test.

  • Remote Interface Software con:

    • Pannello frontale virtuale per il controllo manuale

    • Pannello comandi per esplorare e inviare comandi

    • Pannello registri per il monitoraggio dello stato in tempo reale

    • Pannello calibrazione per i potenziometri digitali interni

    • Pannello firmware per aggiornamenti in loco

    • Pannello modulazione per emulare profili non lineari

  • Tutte le interfacce di comunicazione supportate su software e driver per un'esperienza di programmazione coerente.

Software Magna-Power, driver LabVIEW e IVI

State-of-the-art USA manufacturing with worldwide support

Made in the USA

Made in the USA

Produzione verticalmente integrata per un controllo qualità completo.

I prodotti Magna-Power sono progettati, costruiti, testati e assistiti presso la sede centrale di Magna-Power di 73.500 sq-ft a Flemington, New Jersey, dove lavorazioni metalliche, componenti magnetici, assemblaggio PCB e rodaggio vengono eseguiti internamente per un controllo rigoroso su qualità, costi e tempi di consegna.

  • Prodotto negli USA: ingegneria, produzione e assistenza sotto un unico tetto.
  • Produzione interna: lavorazioni metalliche, componenti magnetici, PCB SMT e finiture.
  • Affidabilità comprovata: ogni unità completamente testata, calibrata e sottoposta a rodaggio.
Assistenza mondiale e supporto ricambi OEM

Assistenza mondiale e supporto ricambi OEM

Competenza di fabbrica, risposta locale.

Magna-Power supporta i propri prodotti con centri di assistenza di fabbrica e autorizzati in Nord America, Europa, Regno Unito, Asia-Pacifico, Asia orientale e Sud America, utilizzando procedure di fabbrica e ricambi originali per ripristinare le unità alle specifiche originali, in garanzia e fuori garanzia.

  • Copertura globale: sede centrale nel New Jersey e centri di assistenza autorizzati regionali.
  • Riparazioni uniformi: diagnostica di fabbrica, istruzioni operative e schemi di sistema.
  • Ricambi OEM originali: gruppi di ricambio testati per un servizio prevedibile e con tempi di fermo ridotti.

Model Ordering Guide

For both ordering and production, TS Series models are uniquely defined by several key characteristics, as defined by the following diagram:

TS Series Ordering Guide

TS Series Models

There are 275 different models in the TS Series spanning power levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW, 50 kW, 75 kW, 100 kW. To determine the appropriate model:

  1. Select the desired Max Voltage (Vdc) from the left-most column.
  2. Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.
  3. Construct your model number according to the model ordering guide.
Max Voltage
Vdc
5 kW 10 kW 15 kW 20 kW 25 kW 30 kW 40 kW 50 kW 75 kW 100 kW Ripple5
mVrms
Efficiency
Max Current Adc
Chassis Height 3U 3U 3U 4U/6U2 4U/6U2 6U 8U 8U 12U 16U
5 900 18001 27001 50 84%
8 600 25003,4 50004 75004 100004 40 85%
10 500 900 20003 27001 4000 6000 8000 40 87%
16 300 600 900 1800 35 87%
20 250 500 750 1000 1250 1500 2000 2500 3750 5000 40 88%
25 200 400 600 800 1000 1200 1600 2000 3000 4000 40 89%
32 150 300 450 625 781 900 1250 1562 2343 3124 40 89%
40 125 250 375 500 625 750 1000 1250 1875 2500 40 89%
50 100 200 300 400 500 600 800 1000 1500 2000 50 89%
60 83 166 249 333 416 498 666 832 1248 1664 60 87%
80 62 124 186 250 312.5 372 500 625 937.5 1250 60 90%
100 50 100 150 200 250 300 400 500 750 1000 60 90%
125 40 80 120 160 200 240 320 400 600 800 100 90%
160 31 62 93 125 156 186 250 312 468 624 120 90%
200 25 50 75 100 125 150 200 250 375 500 125 91%
250 20 40 60 80 100 120 160 200 300 400 130 91%
300 16 32 48 66.6 83.3 96 133.2 166.6 249.9 333.2 160 91%
375 13 26 39 53.3 66.6 78 106.6 133.2 199.8 266.4 170 92%
400 12 24 36 50 62.4 72 100 125 187.2 249.6 180 92%
500 10 20 30 40 50 60 80 100 150 200 220 92%
600 8 16 24 33.3 41.6 48 66.6 83.2 124.8 166.4 250 92%
800 6 12 18 25 31.2 36 50 62.4 93.6 124.8 300 92%
1000 5 10 15 20 25 30 40 50 75 100 350 92%
1250 4 8 12 16 20 24 32 40 60 80 375 92%
1500 3.3 6.6 9.9 13.3 16.6 19.8 26.6 33.2 49.8 66.4 400 92%
2000 2.5 5 7.5 10 12.5 15 20 25 37.5 50 450 92%
3000 1.6 3.2 4.8 6.6 8.3 9.6 13.2 16.6 24.9 33.2 500 92%
4000 1.2 2.4 3.6 5 6.2 7.2 10 12.4 18.6 24.8 550 92%
5000 1 2 3 4 5 6 8 10 15 20 1500 92%
6000 0.8 1.6 2.5 3.3 4.1 5 6.6 8.3 12.3 16.4 1700 92%
AC Input Voltage
Vac
Input Current Per Phase Aac
208/240 Vac, 1Φ 41
208/240 Vac, 3Φ 18 36 52 69 85 105
380/415 Vac, 3Φ 10 20 29 38 47 57 76 94 141 188
440/480 Vac, 3Φ 9 17 25 33 40 50 66 82 120 160

1 Models designated as special low-voltage high-current models that may vary in size and input current from the standard TS Series models within the same power envelope.

2 20/25 kW models with 380/415, 3Φ input or 440/480 Vac, 3Φ input come in a 4U chassis. 20/25 kW models with 208/240, 3Φ input come in a 6U chassis.

3 Available with 380/415, 3Φ input or 440/480 Vac, 3Φ input only, 4U.

4 45ºC max ambient operating temperature rating for standard air cooled configurations. 50ºC max ambient operating temperature rating for configurations with Water Cooling (+WC) option.

5 Ripple specifed for standard models. Ripple will be higher for models with the High Slew Rate Output (+HS) option page for more details.

Specifications are subject to change without notice. Unless otherwise noted, all specifications measured at the product's maximum ratings.

AC Input Specifications

1Φ AC Input Voltage
1Φ, 2-wire + ground; Available on 5 kW models only
208 Vac (operating range 187 - 229 Vac)
240 Vac (operating range 216 - 264 Vac)
3Φ AC Input Voltage
3Φ, 3-wire + ground
208 Vac (operating range 187 to 229 Vac)
240 Vac (operating range 216 to 264 Vac)
380/400 Vac (operating range 342 to 440 Vac)
415 Vac (operating range 373 to 456 Vac)
440 Vac (operating range 396 to 484 Vac)
480 Vac (operating range 432 to 528 Vac)
Input Frequency
50 Hz to 400 Hz
Power Factor
> 0.92 at maximum power (3Φ Input)
> 0.70 at maximum power (1Φ Input)
AC Input Isolation
±2500 Vdc, maximum input voltage to ground

DC Output Specifications

Voltage Ripple
Model specific. Refer to chart of available models.
Line Regulation
Line regulation is a measure of a power supply's ability to maintain its output voltage (or current) given changes in the input line voltage. Line regulation is expressed as percent of change in the output voltage (or current) relative to the change in the input line voltage.
Voltage mode: ± 0.004% of full scale
Current mode: ± 0.02% of full scale
Load Regulation
Load regulation is a measure of the power supply's ability to maintain its output voltage (or current) given changes in the load, measured while operating at the maximum rated voltage (or current). Load regulation is expressed as the difference between voltage (or current) at full load minus voltage (or current) at min load, divided by the products max voltage (or current) rating.
Voltage mode: ± 0.01% of full scale
Current mode: ± 0.04% of full scale
Stability
± 0.10% for 8 hrs. after 30 min. warm-up
Efficiency
85% to 95%
Model specific. Refer to chart of available models.
Maximum Slew Rate
Standard Models
< 170 ms for a programmed output voltage change from 0 to 63%
< 200 ms for a programmed output current change from 0 to 63%
Maximum Slew Rate
Models with High Slew Rate Output (+HS) Option
< 5 ms for a programmed output voltage change from 0 to 63%
< 10 ms for a programmed output current change from 0 to 63%
Bandwidth
Standard Models
3 Hz with remote analog voltage programming
2 Hz with remote analog current programming
Bandwidth
Models with High Slew Rate Output (+HS) Option
60 Hz with remote analog voltage programming
45 Hz with remote analog current programming
DC Output Isolation
Models Rated ≤1000 Vdc
±1000 Vdc, maximum output voltage to ground
DC Output Isolation
Models Rated >1000 Vdc or Models with +ISO Option
±(3000 Vdc + Vo/2), maximum output voltage to ground where Vo is the maximum output voltage of the power supply

Programming Interface Specifications

Front Panel Programming
Stepless aluminum rotary knobs and keypad
Computer Interface
RS232, D-sub DB-9, female (Standard)
LXI TCP/IP Ethernet RJ45 (Option +LXI)
IEEE-488 GPIB (Option +GPIB)
External User I/O Port
Analog and Digital Programming
37-pin D-sub DB-37, female
Referenced to Earth ground; isolated from power supply output
See User Manual for pin layout
Remote Sense Limits (Wired)
Available for models ≤ 1000 Vdc without High Isolation Output (+ISO) option
3% maximum voltage drop from output to load

Accuracy Specifications

Voltage Programming Accuracy
Programming accuracy is a measure of how close the actual power supply output will be to the programmed setting, as measured by an ideal meter.
± 0.075% of max rated voltage
Over Voltage Trip Programming Accuracy
± 0.075% of max rated voltage
Current Programming Accuracy
Programming accuracy is a measure of how close the actual power supply output will be to the programmed setting, as measured by an ideal meter.
± 0.075% of max rated current
Over Current Trip Programming Accuracy
± 0.075% of max rated current
Voltage Readback Accuracy
Readback accuracy is a measure of how close the measured and displayed value will be to the actual power supply output.
± 0.2% of max rated voltage
Current Readback Accuracy
Readback accuracy is a measure of how close the measured and displayed value will be to the actual power supply output.
± 0.2% of max rated current

External User I/O Specifications

Analog Programming and Monitoring Levels
0-10 Vdc
Analog Output Impedances
Voltage output monitoring: 100 Ω
Current output monitoring: 100 Ω
+10V reference: 1 Ω
Digital Programming and Monitoring Limits
Input: 0 to 5 Vdc, 10 kΩ input impedance
Output: 0 to 5 Vdc, 5 mA drive capacity

Physical Specifications

Racking Standard
EIA-310
Rear Support Rails
Included
Size and Weight
5 kW Models
3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
74 lbs (34.57 kg)
Size and Weight
10 kW Models
3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
94 lbs (42.64 kg)
Size and Weight
15 kW Models
3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
125 lbs (56.70 kg)
Size and Weight
20 kW Models; 380/415 Vac and 440/480 Vac, 3Φ input
4U
7” H x 19” W x 24” D (17.8 x 48.2 x 60.9 cm)
160 lbs (72.6 kg)
Size and Weight
20 kW Models; 208/240 Vac, 3Φ input
6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
185 lbs (83.9 kg)
Size and Weight
25 kW Models; 380/415 Vac and 440/480 Vac, 3Φ input
4U
7” H x 19” W x 24” D (17.8 x 60.9 x 48.2 cm)
180 lbs (81.7 kg)
Size and Weight
25 kW Models; 208/240 Vac, 3Φ input
6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
220 lbs (99.79 kg)
Size and Weight
30 kW Models
6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
245 lbs (111.13 kg)
Size and Weight
40 kW Models
With casters removed:
8U
14” H x 19” W x 24” D
(35.6 x 48.2 x 60.9 cm)
315 lbs (142.9 kg)

With casters attached:
17.75” H x 19” W x 24” D
(45.1 x 48.2 x 60.9 cm)
315 lbs (142.9 kg)
Size and Weight
50 kW Models
With casters removed:
8U
14” H x 19” W x 24” D
(35.6 x 48.2 x 60.9 cm)
355 lbs (161.0 kg)

With casters attached:
17.75” H x 19” W x 24” D
(45.1 x 48.2 x 60.9 cm)
355 lbs (161.0 kg)
Size and Weight
75 kW Models
With casters removed:
12U
21” H x 19” W x 24” D
(53.3 x 48.2 x 60.9 cm)
540 lbs (244.9 kg) With casters attached:
24.75” H x 19” W x 24” D
(62.9 x 48.2 x 60.9 cm)
540 lbs (244.9 kg)
Size and Weight
100 kW Models
With casters removed:
16U
28” H x 19” W x 24” D
(71.1 x 48.2 x 60.9 cm)
725 lbs (328.9 kg) With casters attached:
31.75” H x 19” W x 24” D
(80.7 x 48.2 x 60.9 cm)
725 lbs (328.9 kg)

Environmental Specifications

Ambient Operating Temperature
-25°C to 50°C
Storage Temperature
-40°C to +85°C
Humidity
Relative humidity up to 95% non-condensing
Temperature Coefficient
0.04%/°C of maximum output voltage
0.06%/°C of maximum output current
Air Cooling
3U and 6U Models
Side air inlet, rear exhaust
Air Cooling
4U, 8U, 12U, and 18U Models
Front and side air inlet, rear exhaust
Water Cooling
With Water Cooling (+WC) Option
25°C maximum inlet temperature
1.5 GPM minimum flow rate for 3U/4U units
3.0 GPM minimum flow rate for 6U/8U units
4.5 GPM minimum flow rate for 12U units
6.0 GPM minimum flow rate for 16U units
80 PSI maximum pressure
1/4” NPT male pipe size (3U/4U models)
1/2” NPT male pipe size (6U/8U/12U/16U models)
Front air intake, rear exhaust (6U/8U/12U/16U models only)

Regulatory Specifications

EMC
Complies with 2014/30/EU (EMC Directive)
CISPR 22 / EN 55022 Class A
Safety
Complies with EN61010-1 and 2014/35/EU (Low Voltage Directive)
CE Mark
Yes
RoHS Compliant
Yes

The following are vectorized diagrams for the TS Series. Refer to the Downloads section for downloadable drawings.

Front Panel
3U Models
Rear Panel
3U Models
Rear Panel
3U Models, With Water Cooling (+WC) Option
Side Panel
3U Models
Front Panel
4U Models
Rear Panel
4U Models
Rear Panel
4U Models, With Water Cooling Option (+WC)
Side Panel
4U Models
Side Panel
4U Models, With Water Cooling Option (+WC)
DC Output Bus
4U Models, Rated Below 125 Vdc
DC Output Bus
4U Models, Rated 125 Vdc to 1000 Vdc
DC Output Bus
4U Models, Rated Above 1000 Vdc or with High Isolation Option (+ISO)
Front Panel
6U Models
Rear Panel
6U Models
Rear Panel
6U Models, With Water Cooled (+WC) Option
Side Panel
6U Models
Front Panel
8U Models
Rear Panel
8U Models
Rear Panel
8U Models, With Water Cooling Option (+WC)
Side Panel
8U Models
DC Output Bus
8U Models, Rated Below 125 Vdc
DC Output Bus
8U Models, Rated 125 Vdc to 1000 Vdc
DC Output Bus
8U Models, Rated Above 1000 Vdc or with High Isolation Output (+ISO)
Full View
12U Models
DC Output Bus
12U Models, Rated Below 125 Vdc
DC Output Bus
12U Models, Rated 125 Vdc to 1000 Vdc
DC Output Bus
12U Models, Rated Above 1000 Vdc or with High Isolation Output (+ISO)
Full View
16U Models
DC Output Bus
16U Models, Rated Below 125 Vdc
DC Output Bus
16U Models, Rated 125 Vdc to 1000 Vdc
DC Output Bus
16U Models, Rated Above 1000 Vdc or with High Isolation Output (+ISO)

Integrated Options

Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.

High Isolation Output
Option
+ISO
Available for models rated for 250 Vdc to 1000 Vdc, the +ISO option greatly increases the output isolation, used when the application demands floating or tying units in series beyond the standard ±1000 Vdc output isolation rating.
High Slew Rate Output
Option
+HS
A hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This option provides higher bandwidth with faster output rise and fall times.
IEEE-488 GPIB
Option
+GPIB
IEEE-488 General Purpose Interface Bus (GPIB) communication interface providing full command support and compatibility with other GPIB devices
Integrated Blocking Diode
Option
+BD
An internally heatsinked protection diode on the positive output terminal of a MagnaDC programmable DC power supply to protect the product's output from reverse voltages far exceeding the product's output voltage rating.
LXI TCP/IP Ethernet
Option
+LXI
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Water Cooling
Option
+WC
Using an integrated central heat exchanger and specially wound magnetic components, water cooling is available for select Magna-Power power supplies for use in densely packaged system cabinets, where heat removal by the product's standard air cooling presents a challenge.

Accessories

External accessories and integration services available for this product.

BDx Module
1U blocking diode module covering a wide range of voltages and currents and providing necessary cooling, power supply controls interface, and remote sensing location.
DBx Module
High-performance add-on bringing ultra-high stability less than 10 ppm, up to 24-bit resolution, and up to 10x reduction in ripple.
DC Power Cables
DC power cables with wide range voltage ratings, current ratings, and termination options, made-to-order by Magna-Power

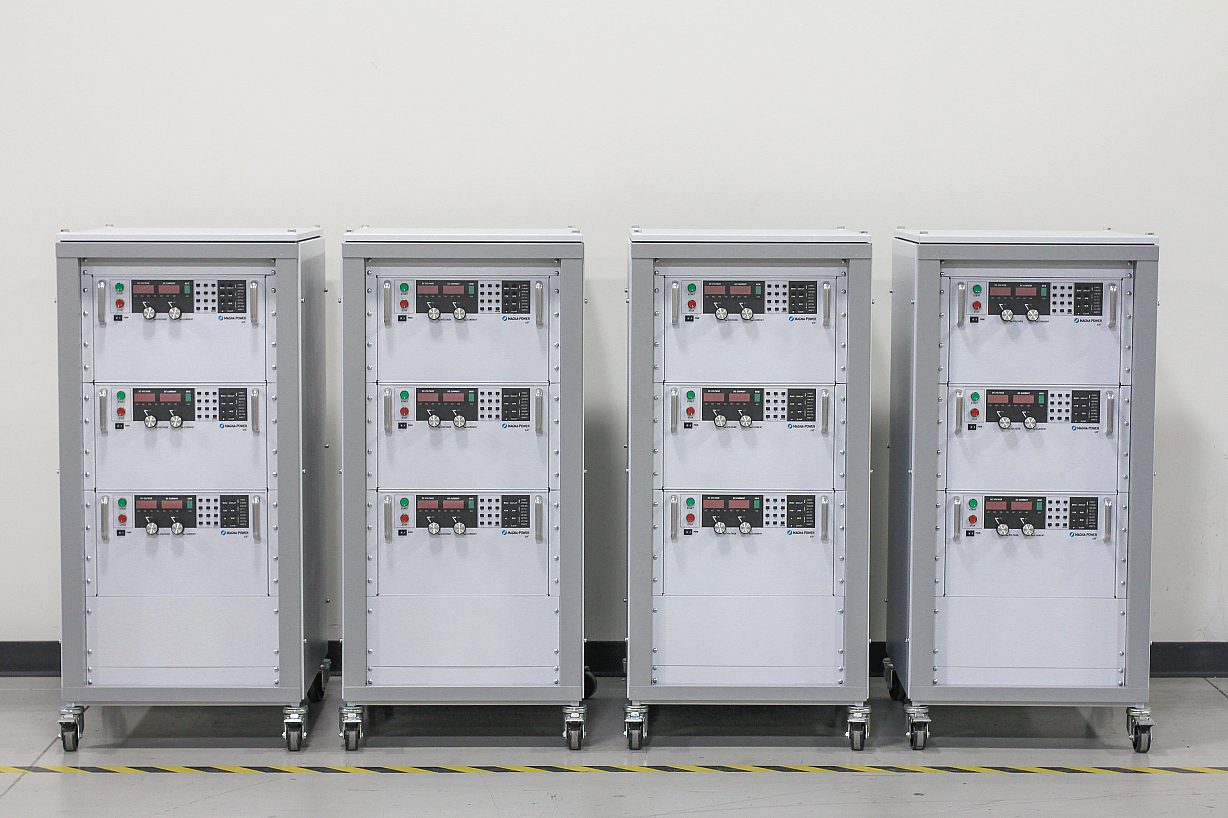

Rack Enclosures and Integration
Various size rack enclosures, including 12U, 24U, 30U, 36U, 30Ux2 and 36Ux2, with casters, fans and product integration.
RS485 Converter
Industrial RS232 to Addressable RS485 Converter. Plugs into product's RS232 port.
UID46: Universal Interface Device 46
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
UID47: Universal Interface Device 47
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37-pin cables with a braided shield.
USB Edgeport Converter
Industrial Plug and Play USB to RS232 Converter. Adapter plugs into product's RS232 port.

Documentation

TS Series User Manual [EN] [HTML] [Recommended]
TS Series Datasheet [4.7.1] [EN] [PDF]
TS Series User Manual [49297] [EN] [PDF]

Software

Photovoltaic Power Profiles Emulation [2.0.0.12] [ZIP] [License Required]
