XR 시리즈

Programmable DC Power Supply

Size
2U
Power
2 kW to 10 kW
Manufactured
USA
Build-time
4-6 weeks

2U XR 시리즈는 2 kW, 4kW, 6kW, 8kW 및 10kW의 2U 패키지에서 고전압 (1500 VDC보다 큰 250 ADC보다 큰) 모델을 제공함으로써 1U SL 시리즈를 보완합니다. XR 시리즈는 Magna-Power 제품 제품에서 최대 10,000 VDC 및 최대 600 DC의 고전류 모델에서 가장 높은 전압 범위를 특징으로하며, 회사의 시그니처 전류 공급 전력 처리를 활용하여 강력한 전력 변환을 제공합니다. 또한 높은 정확도 프로그래밍 및 모니터링 레벨을 통해 전원 공급 장치 측정에 대한 신뢰를 얻어 외부 전원 미터가 필요하지 않습니다.

CE Mark Logo UKCA Logo
Magna-Power Expert

Talk with an expert

Fast, accurate power delivery with controls and options tailored to your needs

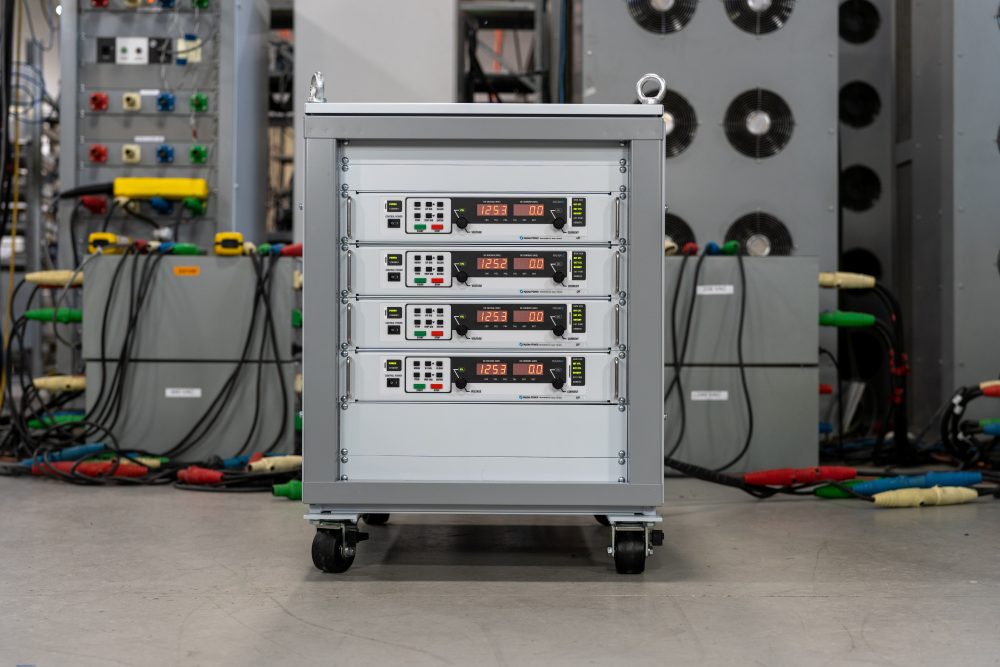

2U에서 고전압 및 대전류 성능 구현

2U에서 고전압 및 대전류 성능 구현

까다로운 부하를 위한 정밀하고 안정적인 출력.

XR Series는 1U SL Series를 보완하여 2000 Vdc에서 최대 10,000 Vdc의 고전압 및 375 Adc에서 최대 600 Adc의 대전류를 지원하는 2–10 kW 모델로 확장하며, 모두 컴팩트한 2U 패키지에 담겨 있습니다. 자동 크로스오버 기능을 갖춘 정전압 또는 정전류 모드에서 XR Series는 빠른 과도 응답 회복, 전압 및 전류에 대한 ±0.075% 프로그래밍 정확도, ±0.2% 측정 정확도를 제공하여 외부 계측 장비 없이도 신뢰할 수 있는 제어 및 판독을 지원합니다.

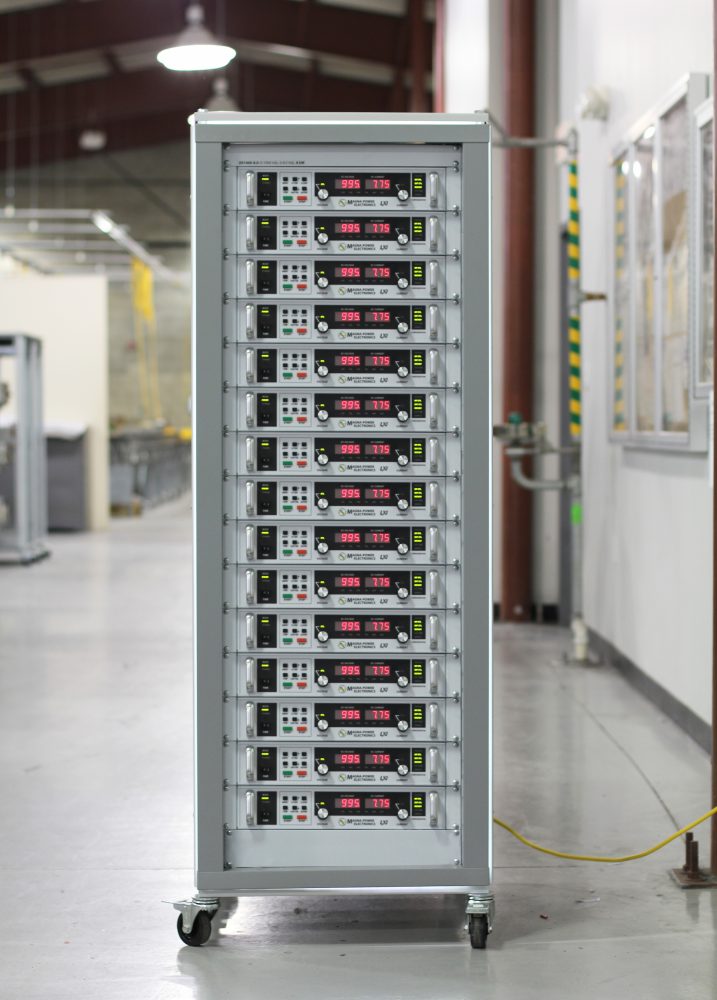

통합 옵션으로 주문 시 구성

통합 옵션으로 주문 시 구성

풍부한 표준 기능, 필요 시 확장 가능.

XR Series는 강력한 기본 사양을 갖추고 있습니다: RS232를 통한 SCPI, 절연된 37핀 사용자 I/O, LabVIEW 및 IVI 드라이버, Remote Interface Software가 기본 포함됩니다. 더 높은 요구 사항이 있을 경우, 완전 통합형 옵션을 통해 외부 장치나 임시 배선 없이 성능, 연결성, 기구부를 맞춤 구성할 수 있습니다.

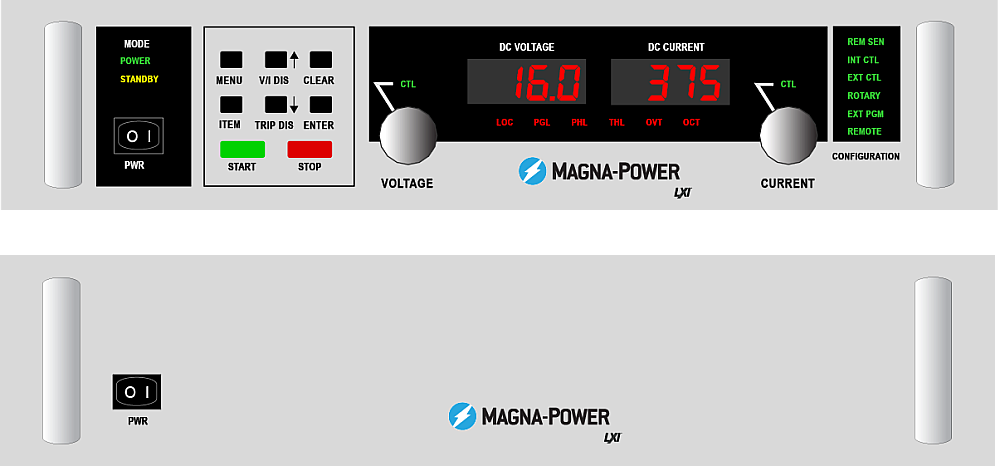

블랭크 패널 옵션을 갖춘 무단계 전면 패널 제어

블랭크 패널 옵션을 갖춘 무단계 전면 패널 제어

필요한 곳에서는 직접 조작, 필요 없는 곳에서는 깔끔하게 숨김.

표준 XR 전면 패널은 로터리 및 키 기반 제어, 밝은 디지털 계측기, 명확한 상태 표시기를 제공하여 운전자가 설정값을 구성하고, 전원 공급 장치를 시작 및 정지하며, 시스템 상태를 한눈에 확인할 수 있습니다. OEM 및 생산 장비용으로는 옵션인 블랭크(C-버전) 전면 패널이 로컬 제어를 완전히 제거하면서도 통신 인터페이스와 후면 37핀 사용자 I/O를 통한 완전한 제어를 유지하여 시스템을 안전하고 깔끔하며 운전자 조작 방지 상태로 유지합니다.

Rugged by design: safety + reliability, as you'd expect from Magna-Power.

신뢰성 높은 전류 공급형 전력 처리

신뢰성 높은 전류 공급형 전력 처리

견고한 설계: 가동 시간을 위한 자체 보호 토폴로지.

The SLx Series uses a high-frequency, current-fed architecture that adds a control stage beyond conventional voltage-fed designs. This topology inherently limits fault energy—avoiding fast-rising current spikes and magnetic core saturation so the supply self-protects and your load stays safe. Paired with state-of-the-art SiC power semiconductors, SLx delivers class-leading power density, efficiency, and reliability, including continuous full-power operation up to 50°C ambient.

  • Current-fed architecture with an added control stage vs. voltage-fed.
  • Inherent surge immunity—no current spikes or core saturation.
  • Self-protecting behavior under fault conditions.
  • SiC devices for high density and efficiency; full power to 50°C.
다층 안전, 인터록 및 비상 정지

다층 안전, 인터록 및 비상 정지

표준 프로그래머블 제한값과 하드와이어드 셧다운을 제공합니다.

소프트 스타트 단계가 돌입 전류를 정상 상태 소비 전류 이하로 유지하며, 내장 진단 기능이 입력 전원, 온도 및 내부 상태를 모니터링합니다. 고장 발생 시 즉각적인 원샷(OSHT) 트립이 인버터를 정지시킵니다. 고장 정보는 전면 패널 상태 디스플레이와 SCPI/Modbus를 통해 보고되어 신속한 문제 해결이 가능합니다.

  • 소프트 스타트가 돌입 전류를 제한하여 AC 소비 전류가 정격 전류 이하로 유지됩니다.
  • 프로그래머블 트립: 과전압, 과전류, 과전력.
  • 히트싱크 및 출력 커패시터의 온도 모니터링.
  • 드라이 컨택트 래칭 금지를 위한 5V 인터록 입력 (제어 전원 유지).
  • 24 V 비상 정지는 로직을 우회하여 AC를 차단하며 완전한 하드웨어 셧다운을 수행합니다.

From lab scripts to factory PLCs, flexible programming & integration.

간편한 소프트웨어 통합

직관적인 명령어, 빠른 결과—모든 프로그래밍 언어와 호환됩니다.

MagnaDC 전원공급장치는 소켓 통신을 통해 전송되는 ASCII 기반 명령어인 네이티브 SCPI를 갖춘 명확한 텍스트 기반 API를 제공합니다. 40개 이상의 잘 문서화된 명령어가 시작/정지, 전압 및 전류 설정값, 고정밀 측정, 전체 구성을 지원하여 스크립트와 시스템을 개념 검증 단계에서 양산까지 신속하게 전환할 수 있습니다.

  • 일관된 동작을 제공하는 SCPI 명령어 세트.
  • 시작/정지 및 보호 기능: 출력 활성화, 트립 한계 설정, 상태 조회.
  • 고정밀 측정: 전압, 전류, 전력 및 센스 피드백.
  • 개발자 중심의 문서 및 예제 제공.
import serial
magnaPower = serial.Serial(port='COM4', baudrate=19200)
magnaPower.write('*IDN?\n'.encode())
print magna_power.readline()
magnaPower.write('VOLT 0\n'.encode())
magnaPower.write('CURR 0\n'.encode())
magnaPower.write('OUTP:START\n'.encode())
magnaPower.write('VOLT 270\n'.encode())
currSetPoints = [50, 100, 150, 250]
for currSetPoint in currSetPoints:
    print 'Setting Current to %s A' % currSetPoint
    magnaPower.write('CURR {0}\n'.format(currSetPoint).encode())
    magnaPower.write('MEAS:VOLT?\n'.encode())
    print magnaPower.readline()
    time.sleep(20)
magnaPower.write('OUTP:STOP\n'.encode())
magnaPower.close()
magna_power = serial('COM4', 'BaudRate', 19200);
fopen(magnaPower);
fprintf(magnaPower,'*IDN?');
idn = fscanf(magnaPower);
fprintf(magnaPower,'VOLT 0');
fprintf(magnaPower,'CURR 0');
fprintf(magnaPower,'OUTP:START');
fprintf(magnaPower,'VOLT 270');
for currSetPoint in [50, 100, 150, 250]
    display('Setting Current to '+currSetPoint+' A');
    fprintf(magnaPower, 'CURR '+currSetPoint);
    fprintf(magnaPower,'MEAS:VOLT?');
    display(fscanf(magnaPower));
    pause(20);
end
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include <windows.h>

int main()
{
    printf("Opening connection.\n");

    uint8_t recvBuffer[sizeof(uint8_t) * 256];
    memset(recvBuffer, 0, 256);

    // Choose the serial port name.
    // COM ports higher than COM9 need the \\.\ prefix, which is written as
    // "\\\\.\\" in C because we need to escape the backslashes.
    const char* device = "\\\\.\\COM4";

    // Choose the baud rate (bits per second).
    uint32_t baud_rate = 19200;

    HANDLE port = open_serial_port(device, baud_rate);
    if (port == INVALID_HANDLE_VALUE) { return 1; }

    char* scpiCmd = (char*)"*IDN?\n";
    size_t cmdLen = strlen(scpiCmd);
    int result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    result = read_port(port, recvBuffer, 256);
    printf("Sent: %s\nReceived: %s\n", scpiCmd, recvBuffer);

    scpiCmd = (char*)"VOLT 0\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"CURR 0\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"OUTP:START\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    scpiCmd = (char*)"VOLT 270\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    char setPoints[4][5] = {"50", "100", "150", "200"};
    char setPointBuffer[40];
    scpiCmd = (char*)"MEAS:VOLT?\n";

    for (int i = 0; i < 4; i++)
    {
        sprintf(setPointBuffer, "CURR %s\n", setPoints[i]);
        printf("Setting current to %s A\n", setPoints[i]);
        cmdLen = strlen(setPointBuffer);
        result = write_port(port, (uint8_t*)setPointBuffer, cmdLen);
        if (result < 0)
            return -1;
        memset(recvBuffer, 0, 256);
        result = read_port(port, recvBuffer, 256);
        printf("Received: %s\n", recvBuffer);
        Sleep(20000);  // 20000ms = 20s
    }

    scpiCmd = (char*)"OUTP:STOP\n";
    cmdLen = strlen(scpiCmd);
    result = write_port(port, (uint8_t*)scpiCmd, cmdLen);
    if (result < 0)
        return -1;

    CloseHandle(port);

    printf("Connection closed.\n");
    return 0;
}
using System;
using System.IO.Ports;
using System.Threading;

namespace SerialCommunicationInCSharp
{
  public class Program
  {
    static bool _continue;
    static SerialPort serialPort;

    public static void Main(string[] args)
    {
      Thread readThread = new Thread(Read);

      Console.WriteLine("Opening connection.");

      // Create a new SerialPort object with default settings.
      serialPort = new SerialPort("COM4", 19200, Parity.None, 8, StopBits.One);

      // Set the read/write timeouts
      serialPort.ReadTimeout = 500;
      serialPort.WriteTimeout = 500;

      serialPort.Open();
      _continue = true;
      readThread.Start();

      Console.WriteLine("Sending: *IDN?");
      serialPort.WriteLine("*IDN?");

      serialPort.WriteLine("VOLT 0");
      serialPort.WriteLine("CURR 0");
      serialPort.WriteLine("OUTP:START");
      serialPort.WriteLine("VOLT 270");

      string[] currSetPoints = { "50", "100", "150", "250" };
ß
      for(int i = 0; i < currSetPoints.Length; i++)
      {
        serialPort.WriteLine(String.Format("'CURR {0}", currSetPoints[i]));
        serialPort.WriteLine("MEAS:VOLT?");
        Thread.Sleep(20000);
      }

      serialPort.WriteLine("OUTP:STOP");

      Console.WriteLine("Closing connection.");
      _continue = false;
      serialPort.Close();
      }

    public static void Read()
    {
      while (_continue)
      {
        try
        {
          string message = serialPort.ReadLine();
          Console.WriteLine("Received: " + message);
        }
        catch (TimeoutException) { }
      }
    }
  }
}
PLC 제어 또는 PHIL 시뮬레이션을 위한 외부 User I/O

PLC 제어 또는 PHIL 시뮬레이션을 위한 외부 User I/O

I/O 모듈처럼 배선하세요—추가 절연이 필요 없습니다.

Via the included rear 37-pin User I/O connector, MagnaDC supplies can be fully driven and monitored by external signals or a PLC. Voltage, current, OVT, and OCT set points are programmed with 0–10 V analog inputs, while each diagnostic condition has its own +5V digital status pin. Built-in +2.5V, +5V, and +10V reference rails let you use dry contacts without adding external supplies. All I/O is isolated from the output and referenced to earth ground as standard.

  • 0–10 V analog programming for V, I, OVT, and OCT.

  • Per-fault digital outputs: each diagnostic has its own +5V pin.

  • Isolated user I/O referenced to earth ground—no extra isolators.

  • With High Slew Rate Output (+HS), high-bandwidth response and fast rise times support HIL/PHIL simulation applications.

고성능 마스터-슬레이브 운전

고성능 마스터-슬레이브 운전

성능 저하 없이 전압 또는 전류를 확장하십시오.

All MagnaDC supplies support master-slave operation, using gate-drive signals from the master when configured for parallel, so the whole stack behaves like a single supply—with one control loop and no noisy long analog references. The optional UID47 accessory simplifies wiring for series or parallel sets with near-equal sharing.

  • Single control loop parallel operation: Master gate-drive to slaves for consistent dynamics.

  • Plug & play with the UID47, enabling parallel or series stacks with current/voltage sharing.

  • Series up to the DC isolation rating without added hardware.

  • No additional ORing diodes required for parallel operation.

Magna-Power 소프트웨어, LabVIEW 및 IVI 드라이버

가상 전면 패널부터 완전 자동화까지—즉시 사용 가능합니다.

모든 MagnaDC 전원공급장치에는 IVI 드라이버와 NI LabVIEW 드라이버가 포함되어 있으며, 전체 VI 세트와 예제 프로그램이 함께 제공되어 몇 분 만에 하드웨어와 통신을 시작할 수 있습니다. PC에서 전면 패널 방식의 직접 제어를 위해, Magna-Power의 Remote Interface Software는 명령 및 레지스터부터 캘리브레이션 및 펌웨어까지 전원공급장치에 대한 풍부한 정보를 제공합니다.

  • 전체 VI 세트가 포함된 IVI 및 NI LabVIEW 드라이버 제공.

  • 통합 및 테스트를 신속하게 시작할 수 있는 예제 프로그램.

  • 다음 기능을 갖춘 Remote Interface Software:

    • 수동 제어를 위한 가상 전면 패널

    • 명령 탐색 및 전송을 위한 명령 패널

    • 실시간 상태 모니터링을 위한 레지스터 패널

    • 내부 디지털 포텐셔미터용 캘리브레이션 패널

    • 현장 업그레이드를 위한 펌웨어 패널

    • 비선형 프로파일 에뮬레이션을 위한 모듈레이션 패널

  • 일관된 프로그래밍 경험을 위해 모든 통신 인터페이스가 소프트웨어 및 드라이버 전반에서 지원됩니다.

Magna-Power 소프트웨어, LabVIEW 및 IVI 드라이버

State-of-the-art USA manufacturing with worldwide support

미국 제조

미국 제조

완벽한 품질 관리를 위한 수직 통합 제조.

Magna-Power 제품은 뉴저지주 플레밍턴에 위치한 73,500 sq-ft 규모의 본사에서 설계, 제작, 테스트 및 서비스됩니다. 금속 가공, 자성 부품, PCB 조립, 번인 테스트까지 모두 자체적으로 수행하여 품질, 비용, 납기를 철저히 관리합니다.

  • 미국 제조: 엔지니어링, 제조, 서비스를 한 지붕 아래에서.
  • 자체 생산: 금속 가공, 자성 부품, SMT PCB, 표면 처리.
  • 검증된 신뢰성: 모든 제품을 완벽하게 테스트, 교정, 번인 실시.
전 세계 서비스 및 OEM 부품 지원

전 세계 서비스 및 OEM 부품 지원

공장 전문성, 현지 대응.

Magna-Power는 북미, 유럽, 영국, 아시아태평양, 동아시아, 남미 전역의 공장 및 공인 서비스 센터를 통해 자사 제품을 지원하며, 보증 기간 내외를 불문하고 공장 절차와 정품 부품을 사용하여 장비를 원래 사양으로 복원합니다.

  • 글로벌 커버리지: 뉴저지 본사 및 지역 공인 서비스 센터.
  • 일관된 수리: 공장 진단, 작업 지침서 및 시스템 다이어그램.
  • 정품 OEM 부품: 검증된 교체 어셈블리로 예측 가능하고 다운타임이 적은 서비스 제공.

Model Ordering Guide

For both ordering and production, XR Series models are uniquely defined by several key characteristics, as defined by the following diagram:

XR Series Ordering Guide

XR Series Models

There are 39 different models in the XR Series spanning power levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW. To determine the appropriate model:

  1. Select the desired Max Voltage (Vdc) from the left-most column.
  2. Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.
  3. Construct your model number according to the model ordering guide.
Max Voltage
Vdc
2 kW 4 kW 6 kW 8 kW 10 kW Ripple
mVrms
Efficiency
Max Current Adc
5 375 600 50 80%
10 375 600 50 84%
16 375 500 600 50 84%
20 300 375 500 45 87%
25 320 400 45 88%
32 310 40 88%
2000 1 2 3 4 5 500 93%
3000 0.6 1.3 2 2.6 3.3 600 93%
4000 0.5 1 1.5 2 6500 93%
6000 0.33 0.66 1 1.33 7500 93%
8000 0.25 0.5 0.75 1 8500 93%
10000 0.2 0.4 0.6 0.8 9500 93%
AC Input Voltage
Vac
Input Current Per Phase Aac
208/240 Vac, 1Φ 17
208/240 Vac, 3Φ 8 15 22 29 35
380/415 Vac, 3Φ 5 9 12 16 19
440/480 Vac, 3Φ 4 8 11 14 17

Specifications are subject to change without notice. Unless otherwise noted, all specifications measured at the product's maximum ratings.

AC Input Specifications

1Φ AC Input Voltage
1Φ, 2-wire + ground, Available on 2 kW models only
208 Vac (operating range 187 - 229 Vac)
240 Vac (operating range 216 - 264 Vac)
3Φ AC Input Voltage
3Φ, 3-wire + ground; Available on all models
208 Vac (operating range 187 to 229 Vac)
240 Vac (operating range 216 to 264 Vac)
380 Vac (operating range 342 to 440 Vac)
415 Vac (operating range 373 to 456 Vac)
440 Vac (operating range 396 to 484 Vac)
480 Vac (operating range 432 to 528 Vac)
Input Frequency
50 Hz to 400 Hz
Power Factor
>0.92 at max power; models with 3Φ AC input
0.70 at max power; models with 1Φ AC input
AC Input Isolation
±2500 Vdc, maximum input voltage to ground

DC Output Specifications

Voltage Ripple
Model specific. Refer to chart of available models.
Line Regulation
Line regulation is a measure of a power supply's ability to maintain its output voltage (or current) given changes in the input line voltage. Line regulation is expressed as percent of change in the output voltage (or current) relative to the change in the input line voltage.
Voltage mode: ± 0.004% of full scale
Current mode: ± 0.02% of full scale
Load Regulation
Load regulation is a measure of the power supply's ability to maintain its output voltage (or current) given changes in the load, measured while operating at the maximum rated voltage (or current). Load regulation is expressed as the difference between voltage (or current) at full load minus voltage (or current) at min load, divided by the products max voltage (or current) rating.
Voltage mode: ± 0.01% of full scale
Current mode: ± 0.04% of full scale
Load Transient Response
Load transient response is a measure of how quickly the power supply's output voltage recovers after a step change in the load, measured while operating at maximum rated voltage.
2 ms to recover within ±1% of regulated output with a 50% to 100% or 100% to 50% step load change
Stability
± 0.10% for 8 hrs. after 30 min. warm-up
Efficiency
80% to 93%
Model specific. Refer to chart of available models.
Maximum Slew Rate
Standard Models
< 170 ms for a programmed output voltage change from 0 to 63%
< 200 ms for a programmed output current change from 0 to 63%
Maximum Slew Rate
Models with High Slew Rate Output (+HS) Option
< 5 ms for a programmed output voltage change from 0 to 63%
< 10 ms for an output current change from 0 to 63%
Bandwidth
Standard Models
3 Hz with remote analog voltage programming
2 Hz with remote analog current programming
Bandwidth
Models with High Slew Rate Output (+HS) Option
60 Hz with remote analog voltage programming
45 Hz with remote analog current programming
DC Output Isolation
Models Rated ≤1000 Vdc
±1000 Vdc, maximum output voltage to ground
DC Output Isolation
Models Rated >1000 Vdc and ≤3000 Vdc
±(1500 Vdc + Vo/2), max output voltage to ground, where Vo is the max rated voltage
DC Output Isolation
Models Rated >3000 Vdc
No output isolation, specify positive or negative output polarity at time of order

Programming Interface Specifications

Front Panel Programming
Stepless aluminum rotary knobs and keypad
Computer Interface
RS232, D-sub DB-9, female (Standard)
LXI TCP/IP Ethernet RJ45 (Option +LXI)
IEEE-488 GPIB (Option +GPIB)
External User I/O Port
Analog and Digital Programming
37-pin D-sub DB-37, female
Referenced to Earth ground; isolated from power supply output
See User Manual for pin layout
Remote Sense Limits (Wired)
Available for models ≤ 1000 Vdc
3% maximum voltage drop from output to load

Accuracy Specifications

Voltage Programming Accuracy
Programming accuracy is a measure of how close the actual power supply output will be to the programmed setting, as measured by an ideal meter.
± 0.075% of max rated voltage
Over Voltage Trip Programming Accuracy
± 0.075% of max rated voltage
Current Programming Accuracy
Programming accuracy is a measure of how close the actual power supply output will be to the programmed setting, as measured by an ideal meter.
± 0.075% of max rated current
Over Current Trip Programming Accuracy
± 0.075% of max rated current
Voltage Readback Accuracy
Readback accuracy is a measure of how close the measured and displayed value will be to the actual power supply output.
± 0.2% of max rated voltage
Current Readback Accuracy
Readback accuracy is a measure of how close the measured and displayed value will be to the actual power supply output.
± 0.2% of max rated current

External User I/O Specifications

Analog Programming and Monitoring Levels
0-10 Vdc
Analog Output Impedances
Voltage output monitoring: 100 Ω
Current output monitoring: 100 Ω
+10V reference: 1 Ω
Digital Programming and Monitoring Limits
Input: 0 to 5 Vdc, 10 kΩ input impedance
Output: 0 to 5 Vdc, 5 mA drive capacity

Physical Specifications

Racking Standard
EIA-310
Rear Support Rails
Included
Size and Weight
2 kW Models
2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
45 lbs (20.41 kg)
Size and Weight
4 kW Models
2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
47 lbs (21.32 kg)
Size and Weight
6 kW Models
2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)
Size and Weight
8 kW Models
2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)
Size and Weight
10 kW Models
2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)

Environmental Specifications

Ambient Operating Temperature
-25°C to 50°C
Storage Temperature
-25°C to +85°C
Humidity
Relative humidity up to 95% non-condensing
Temperature Coefficient
0.04%/°C of maximum output voltage
0.06%/°C of maximum output current
Air Flow
Side air inlet, rear exhaust

Regulatory Specifications

EMC
Complies with 2014/30/EU (EMC Directive)
CISPR 22 / EN 55022 Class A
Safety
Complies with EN61010-1 and 2014/35/EU (Low Voltage Directive)
CE Mark
Yes
RoHS Compliant
Yes

The following are vectorized diagrams for the XR Series. Refer to the Downloads section for downloadable drawings.

Front Panel
Side Panel
Communications Interface
LXI TCP/IP Ethernet Option (+LXI)
Communications Interface
IEEE-488 GPIB Option (+GPIB)
Standard Output Bus
Models ≤1000 Vdc
High Voltage Output Bus
Models >1000 Vdc and ≤3000 Vdc
Very High Voltage Output Bus
Models >3000 Vdc
Very High Voltage Output Cable
Included, Models >3000 Vdc

Integrated Options

Standard integrated options are available for Magna-Power products, allowing the product's performance and communication interfaces to be tailors to the specific application.

High Slew Rate Output
Option
+HS
A hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This option provides higher bandwidth with faster output rise and fall times.
IEEE-488 GPIB
Option
+GPIB
IEEE-488 General Purpose Interface Bus (GPIB) communication interface providing full command support and compatibility with other GPIB devices
LXI TCP/IP Ethernet
Option
+LXI
TCP/IP Ethernet communication protocol and single RJ-45 interface, certified to the LXI Class C standard, for socket communications using conventional computer networks
Ruggedized
Option
+RUG
Internal product ruggedization, which has been independently tested to comply with select MIL-STD-810G and RTCA DO-160 shock and vibration specifications.

Accessories

External accessories and integration services available for this product.

BDx Module
1U blocking diode module covering a wide range of voltages and currents and providing necessary cooling, power supply controls interface, and remote sensing location.
DBx Module
High-performance add-on bringing ultra-high stability less than 10 ppm, up to 24-bit resolution, and up to 10x reduction in ripple.
DC Power Cables
DC power cables with wide range voltage ratings, current ratings, and termination options, made-to-order by Magna-Power
Rack Enclosures and Integration
Various size rack enclosures, including 12U, 24U, 30U, 36U, 30Ux2 and 36Ux2, with casters, fans and product integration.
RS485 Converter
Industrial RS232 to Addressable RS485 Converter. Plugs into product's RS232 port.
UID46: Universal Interface Device 46
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.
UID47: Universal Interface Device 47
Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37-pin cables with a braided shield.
USB Edgeport Converter
Industrial Plug and Play USB to RS232 Converter. Adapter plugs into product's RS232 port.

Documentation

XR Series Datasheet [4.6.0] [EN] [PDF]
XR Series Datasheet [4.6.0] [ZH] [PDF]
XR Series User Manual [1.3] [EN] [PDF]

Drawings

Software

Photovoltaic Power Profiles Emulation [2.0.0.12] [ZIP] [License Required]
